Optional feeding methods:

1. Conveyor belt+rubber roller clamp feeding (suitable for pipe through workpieces. Workpiece length>300mm)

2. Strong permanent magnet adsorption conveying and feeding (suitable for carbon steel workpieces. Workpiece size>30mmx30mm)

3. Vacuum negative pressure adsorption conveying and feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size>50mmx50mm)

Equipment configuration:

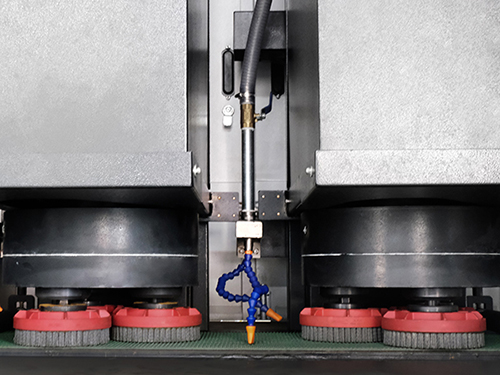

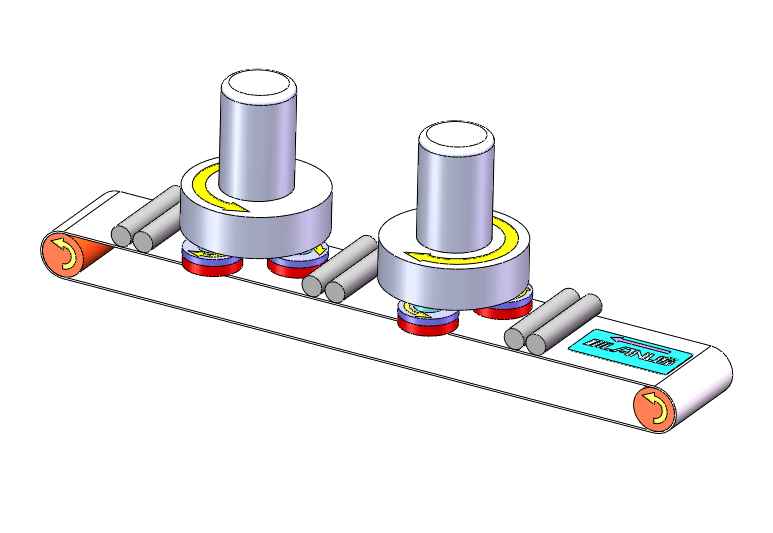

1. Equipment processing width: 300mm, 400mm, 650mm, 1050mm, 1350mm. 1. The width is composed of three planetary arranged disk brushes, with each brush rotating on its own and the entire disk brush combination revolving. 2. The width of 400mm is composed of four planetary arranged disk brushes, with each brush rotating on its own and the entire disk brush combination revolving

3. The 650mm width is composed of 5 staggered disc brushes, with adjacent two disc brushes rotating in both directions. The entire disc brush combination swings laterally in the vertical direction of the feed. The 1050mm width is composed of 7 staggered disc brushes, with adjacent two disc brushes rotating in both directions. The entire disc brush combination swings laterally in the vertical direction of the feed. The 1350mm width is composed of 9 staggered disc brushes, with adjacent two disc brushes rotating in both directions. The entire disc brush combination swings laterally in the vertical direction of the feed

2. Conveyor belt+rubber roller clamp feeding (suitable for pipe through workpieces. Workpiece length>300mm) 3. Strong permanent magnet adsorption conveying feeding (suitable for carbon steel workpieces. Workpiece size>30mmx30mm)

4. Vacuum negative pressure adsorption conveying and feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size>50mmX50mm)

5. Four column synchronous lifting, digital setting and reading of lifting height, unit: mm

6. Each workstation of the equipment is equipped with sprinkler pipes to provide grinding fluid. The magnetic adsorption outlet is equipped with a demagnetizer to demagnetize the workpiece.

7. Equipped with an automatic paper tape filter to filter grinding dust and provide grinding circulating grinding fluid, achieving environmentally friendly production.

8. Advantages of Wet Processing

1. Wet processing of workpieces is less prone to thermal deformation during cold processing;

2. Wet processing results in better surface roughness of workpieces;

3. Wet machining absorbs all grinding dust, creating a better working environment;

4. Wet processing consumables have a longer service life.

Technical parameters:

Equipment processing thickness 0.5-80mm

Sand belt linear speed 12m/s (optional variable frequency speed regulation)

Disk brush rotation speed 800-1500r/min (optional variable frequency speed regulation)

Disk brush revolution speed 50-150r/min (optional variable frequency speed regulation) speed

Disk brush combination swing frequency 120-280 times/min (optional variable frequency adjustable)

Conveying speed 0.5-6m/min (adjustable by frequency converter)
