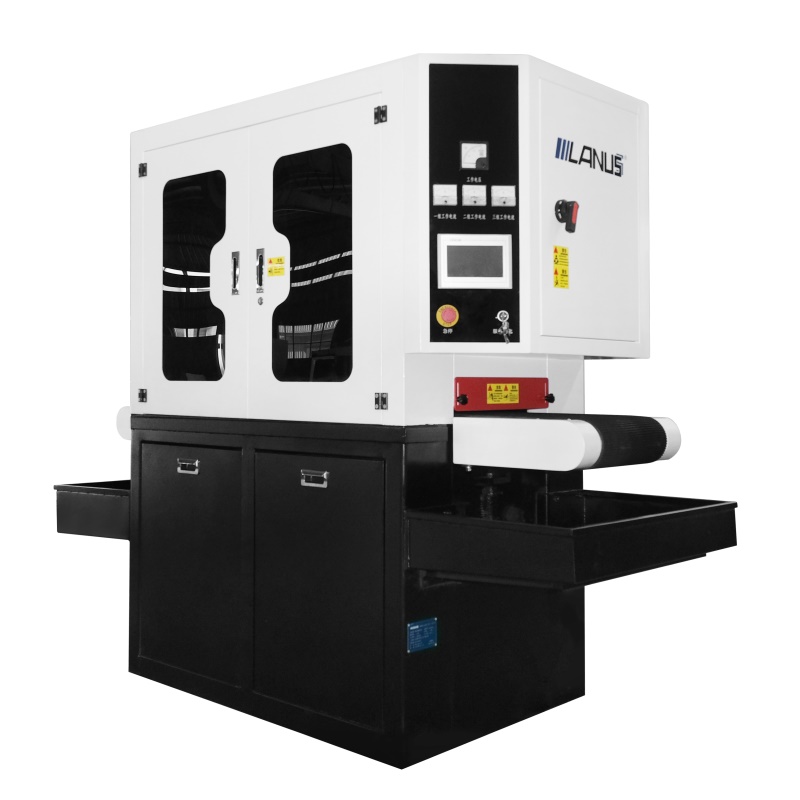

Lanuss wet polishing and drawing equipment
Used for carbon steel plates, aluminum plates, copper plates, titanium alloys, various non-ferrous metals, rubber materials, etc., to achieve the effects of wire drawing, precision polishing, scratch removal, longitudinal burr removal, and oxide skin removal on the surface of products, thereby making the surface of products more beautiful and smooth.
Product Model：LSG-WC350
Scope Of Application
Product scope of application:
Equipment application scope: Suitable for flat plate parts, carbon steel plates, stainless steel plates, aluminum plates, copper plates, titanium alloys, various non-ferrous metals, rubber and plastic materials, marble, graphite, etc. Equipment function: Suitable for surface drawing, polishing, scratch removal, longitudinal burr removal, oxide skin removal, hair pulling, thickness adjustment and other processing of various flat board parts,
Product Parameters
Optional feeding methods:
1. Conveyor belt+rubber roller clamp feeding (suitable for ordinary workpieces. Workpiece length>280mm)
2. Strong permanent magnet adsorption conveying and feeding (suitable for carbon steel workpieces. Workpiece size>30mmx30mm)
3. Vacuum negative pressure adsorption conveying and feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size>50mmx50mm)
4. Rubber roller+rubber roller clamp feeding (made for large and heavy workpieces. Workpiece length>280mm)
Equipment combination: single or multiple combination structures of sanding belt and polishing wheel
Equipment configuration: Processing widths: 350mm, 650mm, 800mm, 1050mm, 1350mm, 1600mm, 1900mm, 2200mm

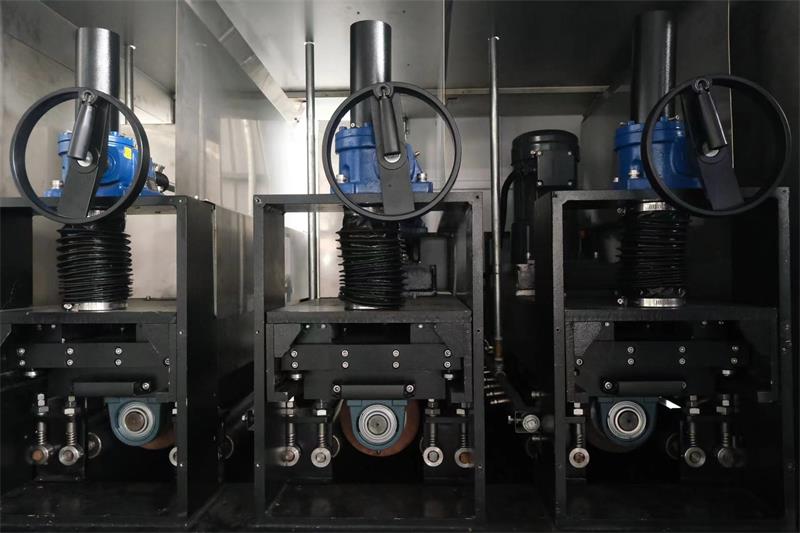

Four column synchronous lifting, digital setting and reading of lifting height, unit: mm
Equipped with wet vacuum cleaners or industrial pulse vacuum cleaners to process grinding dust and achieve environmentally friendly production.
Technical parameters:
Equipment processing thickness 0.5-80mm
Sand belt linear speed 12m/s (optional variable frequency speed regulation)
Polishing wheel line speed 15m/min (optional variable frequency speed regulation)
Conveying speed 2-11m/min (variable frequency adjustable)

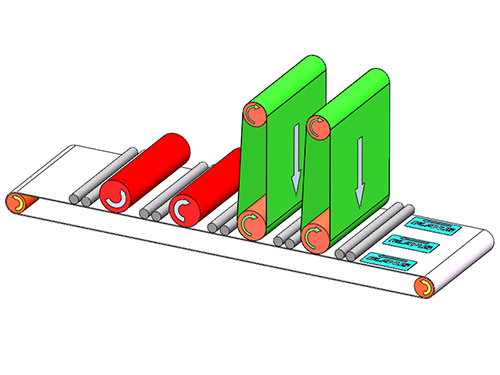

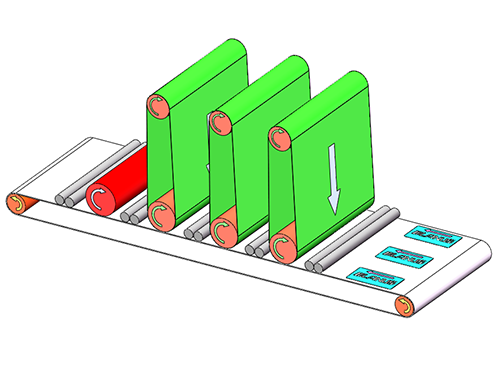

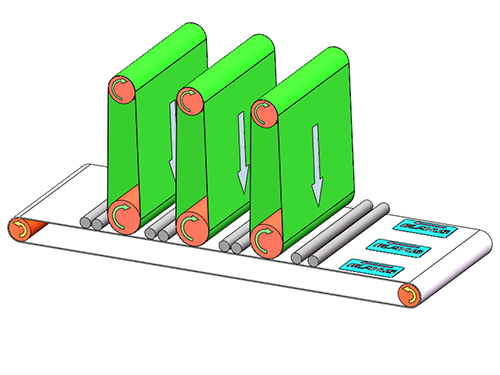

Equipment Structure
 |
 |
 |
 |
 |
 |
 |
 |
 |

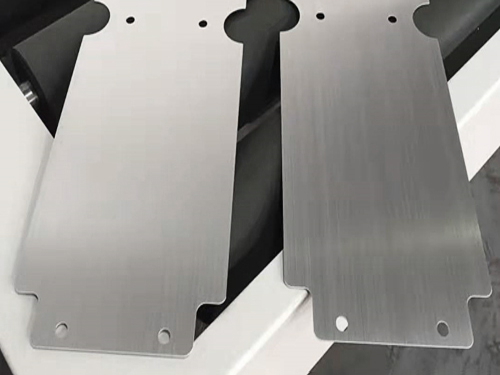

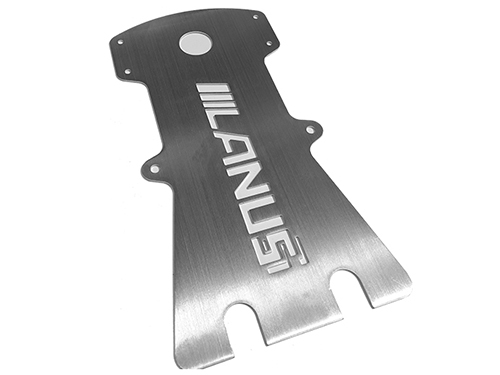

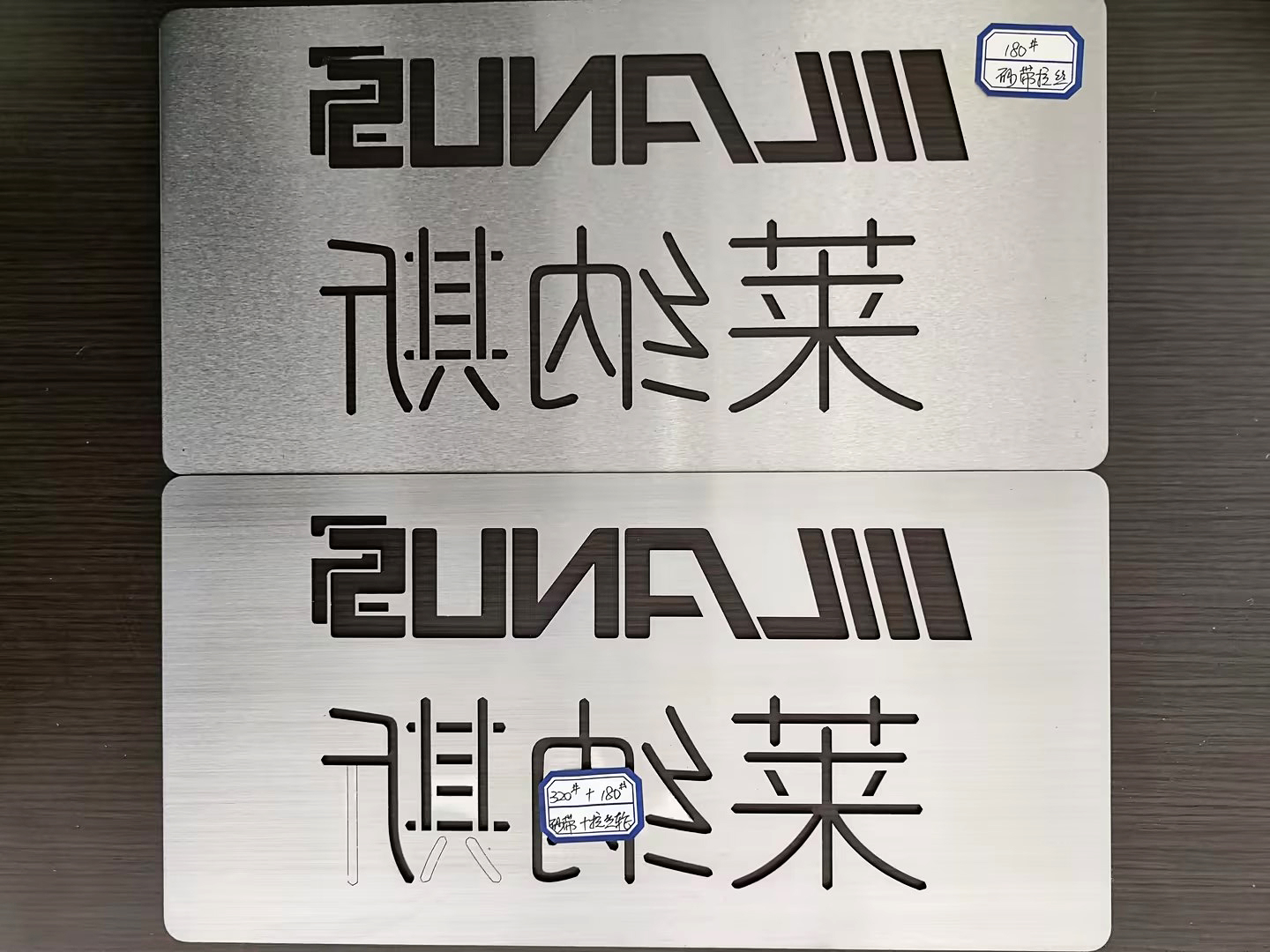

Equipment Processing Workpiece
 |
 |
 |
