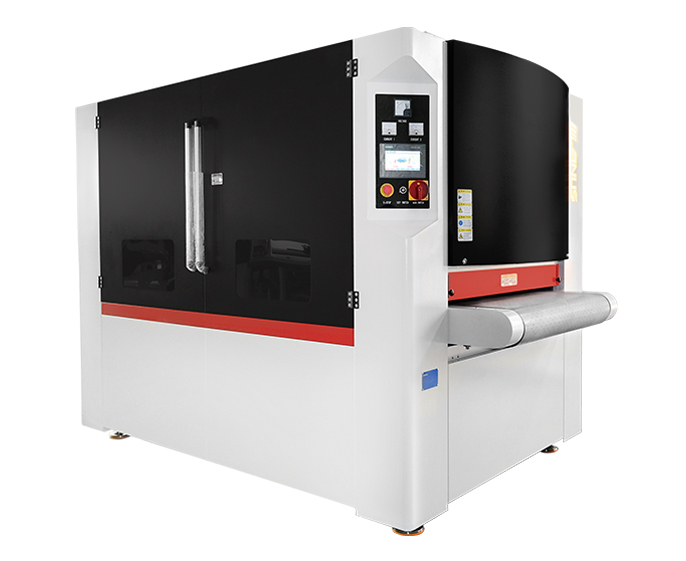

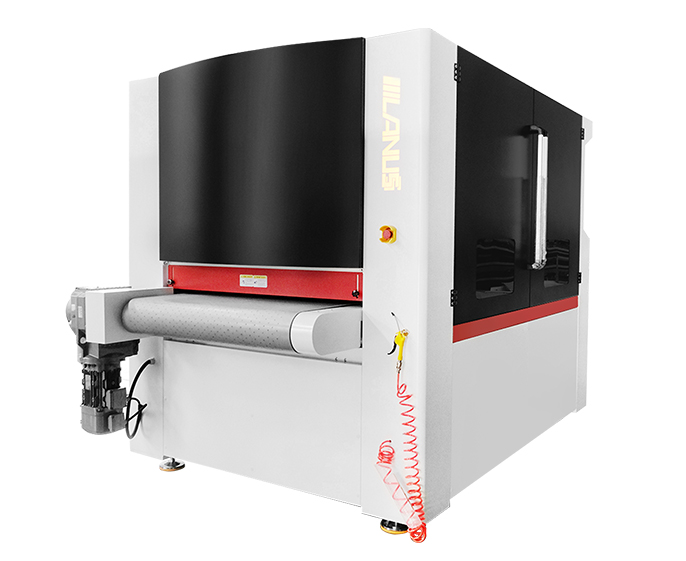

Lanuss Universal Roller Brush Inverted Angle, Deburring and Drawing Equipment
The burrs and scratches generated during laser cutting, sheet cutting, stamping cutting, water cutting and other processes can efficiently achieve a rounded, smooth and beautiful texture on the surface of the product in one go. For example, carbon steel plates, aluminum plates, copper plates, titanium alloys, various non-ferrous metals, rubber and plastic materials in the precision sheet metal industry achieve pre grinding, drawing, polishing, scratch removal, deburring, chamfering and blunting of product surfaces.
Product Model：LSP-L1600
Scope Of Application
Product application scope: Suitable for flat plate parts, carbon steel plates, stainless steel plates, aluminum plates, copper plates, titanium alloys, various non-ferrous metals, rubber materials, etc.
Product Parameters
Equipment function: Pre grinding, drawing, polishing, scratch removal, deburring, chamfering and blunting of workpiece surfaces such as laser cutting, cutting, stamping, waterjet cutting, plasma cutting, etc
Equipment combination: wide sand belt+universal roller brush single or multiple combination structures
Equipment configuration:
Equipment processing width: 450mm, 800mm, 1000mm, 1350mm, 1600mm
Equipment processing thickness: 0.5-80mm
Conveyor feeding speed: 0.5-6m/min (variable frequency adjustable)
Optional feeding methods:
Strong permanent magnet adsorption conveying and feeding (suitable for carbon steel workpieces. Workpiece size>30mmx30mm)
Vacuum negative pressure adsorption conveying and feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size>50mmx50mm) four column synchronous lifting, roller brush station independent lifting, lifting servo control, accuracy 0lmm.
The CNC PLC touch screen of the whole machine adjusts the processing parameters.
Equipped with wet vacuum cleaners or industrial pulse vacuum cleaners to process grinding dust and achieve environmentally friendly production

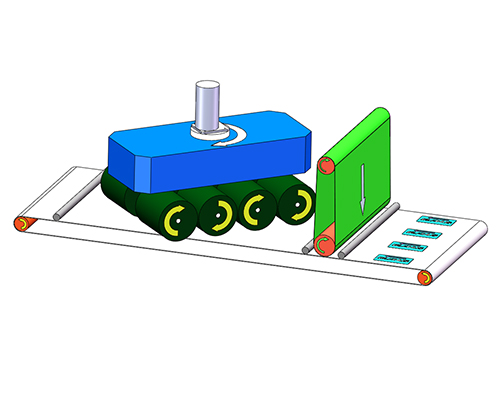

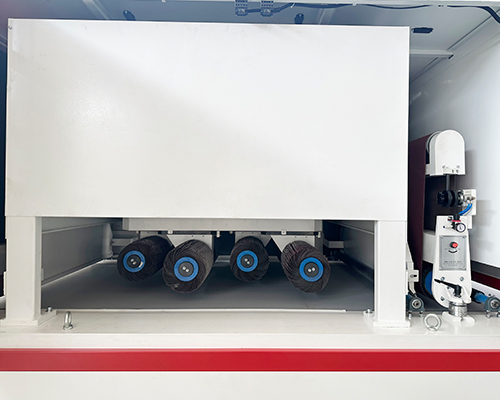

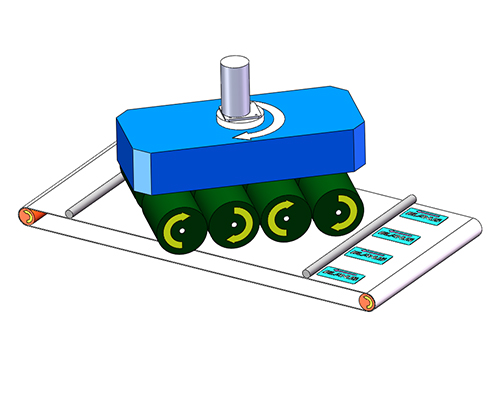

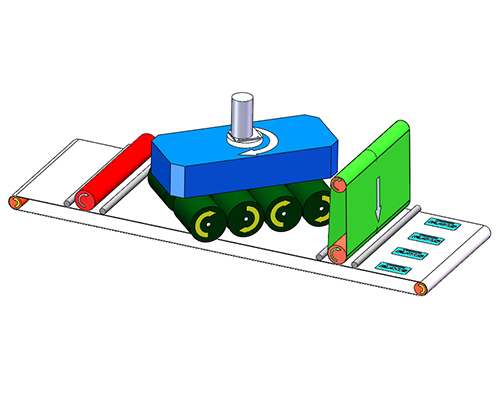

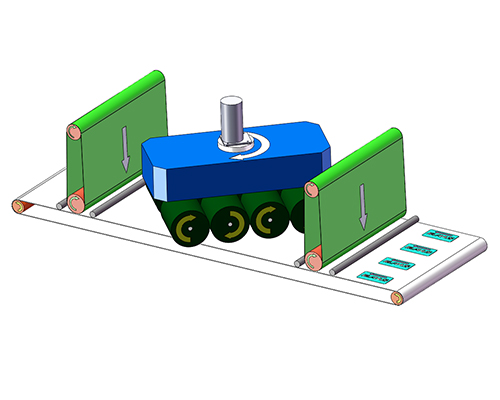

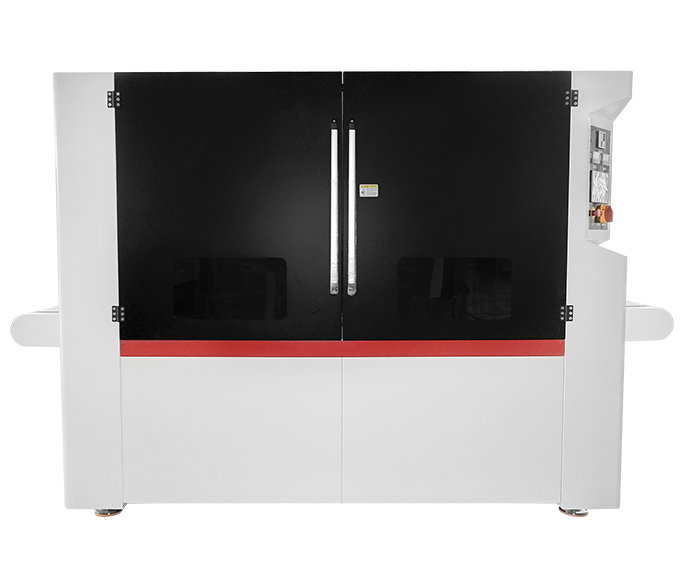

Equipment Structure
 |
 |
 |
 |
 |

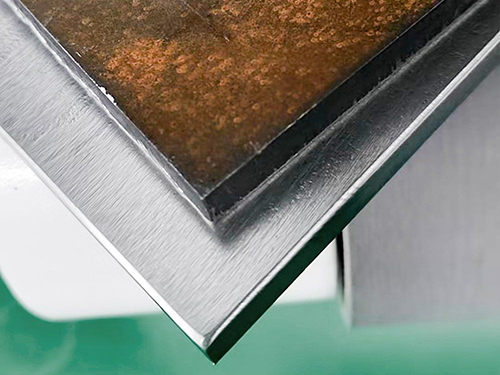

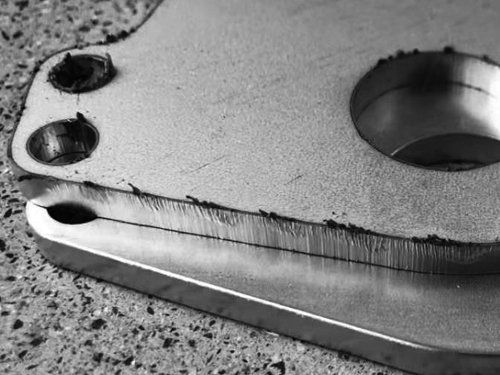

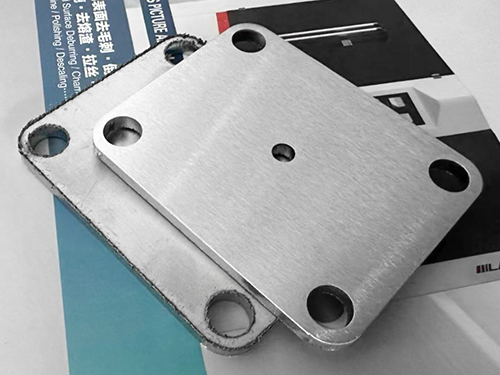

Equipment Processing Workpiece
 |
 |
 |
