Optional feeding methods:

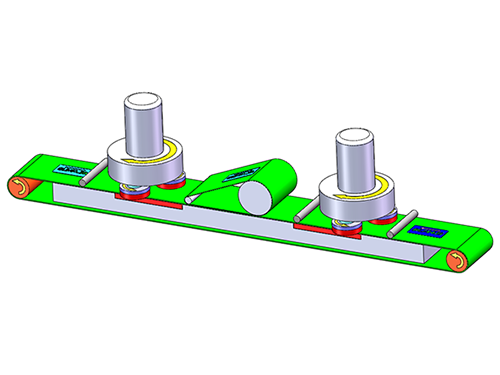

1. Conveyor belt+rubber roller clamp feeding (suitable for pipe through workpieces. Workpiece length>300mm)

2. Strong permanent magnet adsorption conveying and feeding (suitable for carbon steel workpieces. Workpiece size>30mmx30mm)

3. Vacuum negative pressure adsorption conveying and feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size>50mmx50mm)

Product scope of application:

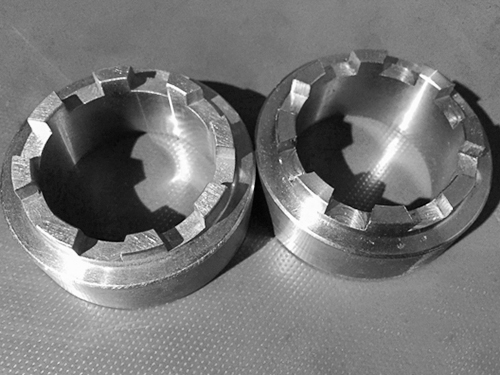

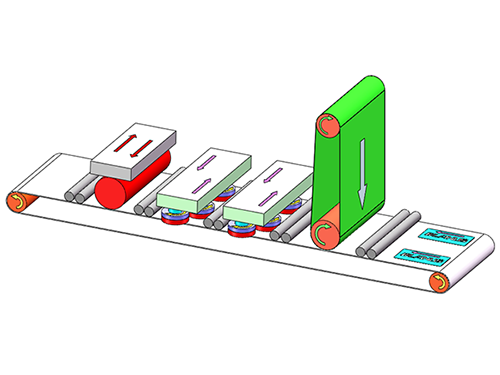

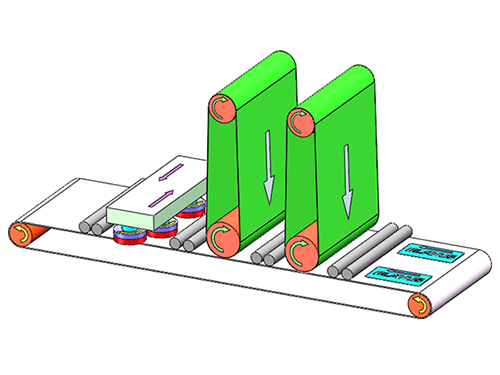

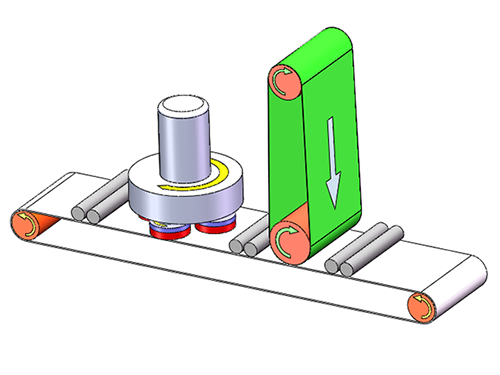

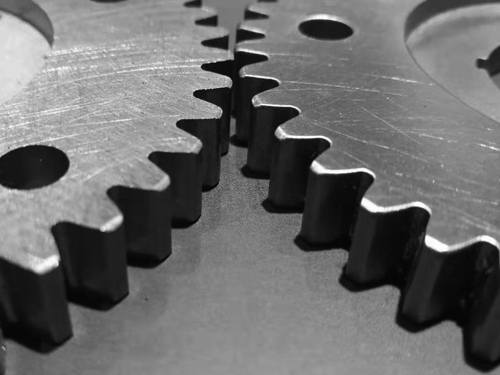

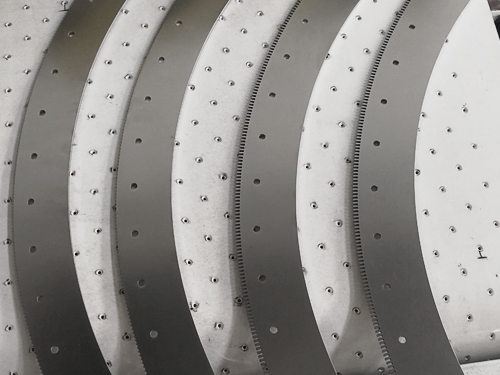

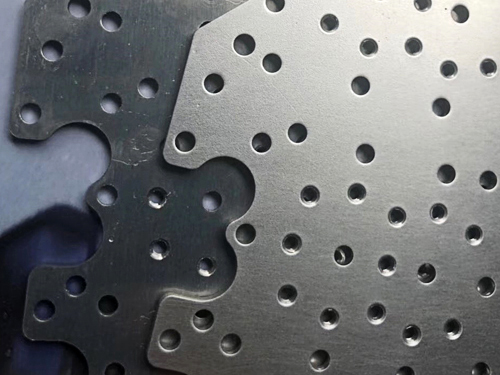

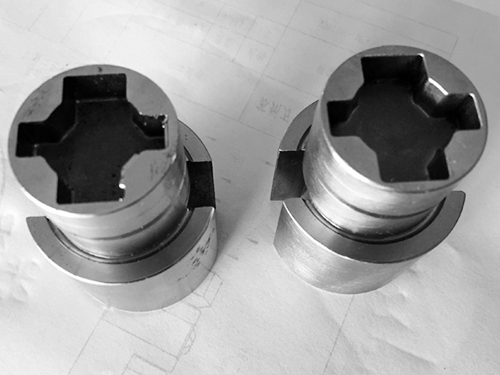

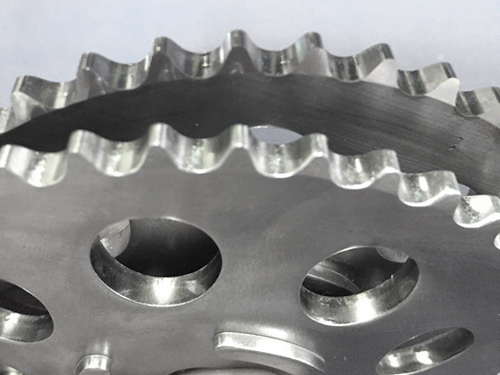

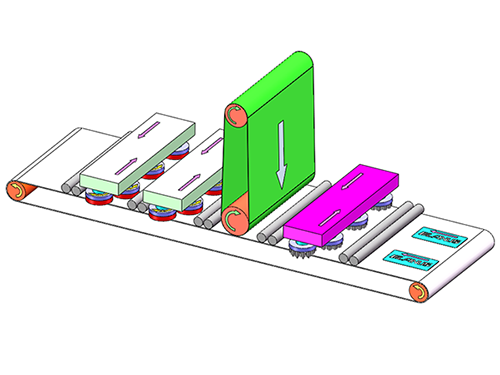

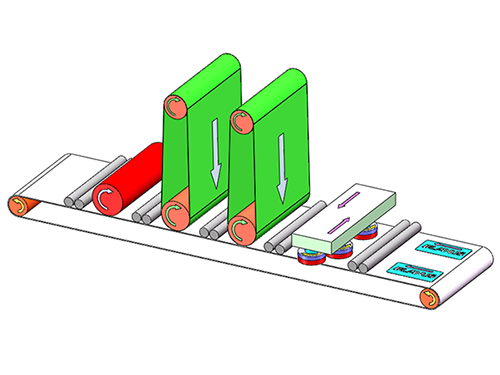

Equipment application scope: Suitable for precision stamping parts, gear parts, automotive components, powder metallurgy parts, machined parts and other equipment functions: deburring the edges and holes of the workpiece to make the surface consistent, and achieving uniform distribution of all edges and holes. Equipment combination: sand belt grinding station+disc brush grinding station, single or multiple combination structures

Equipment configuration:

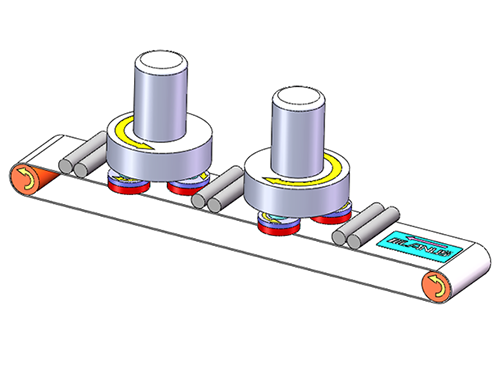

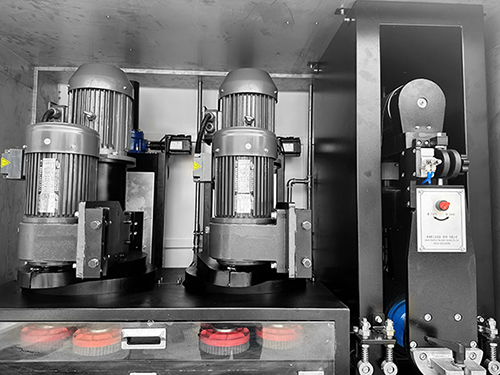

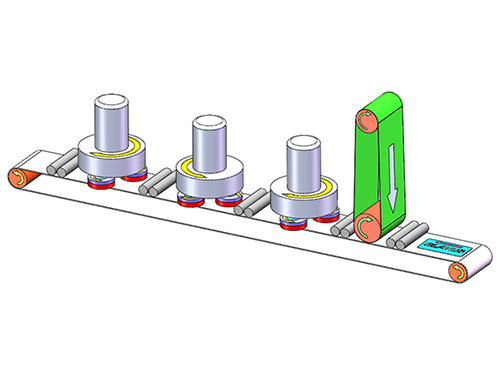

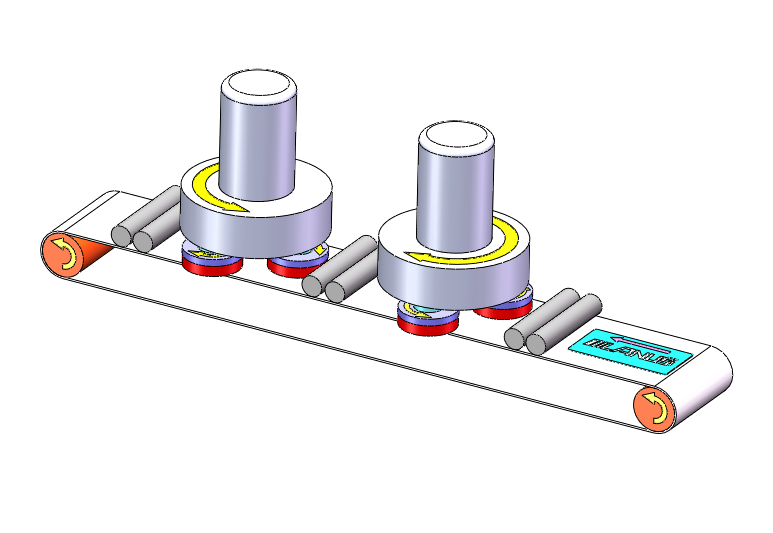

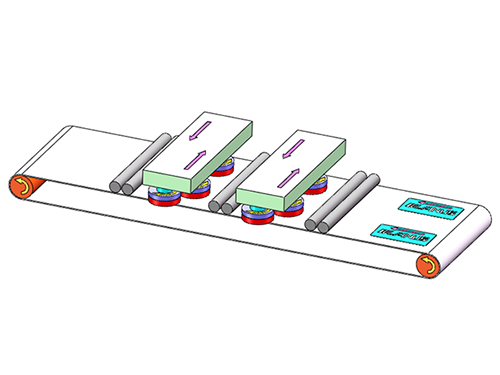

1. Equipment processing width: 300mm, 400mm, 650mm, 1050mm, 1350mm. 1. 300mm width is composed of three planetary arranged disk brushes, with a single disk brush rotating and the entire disk brush combination revolving. 2. 400mm width is composed of four planetary arranged disk brushes, with a single disk brush rotating and the entire disk brush combination revolving. 3. 650mm width is composed of five staggered arranged disk brushes, with adjacent two disk brushes rotating forward and backward, and the entire disk brush combination swinging laterally in the vertical direction of feeding. 4. 1050mm width is composed of seven staggered arranged disk brushes, with adjacent two disk brushes rotating forward and backward, and the entire disk brush combination swinging laterally in the vertical direction of feeding. 5. 1350mm width is composed of nine staggered arranged disk brushes, with adjacent two The disc brush rotates forward and backward, and the entire disc brush assembly swings laterally in the vertical direction of the feeding

2. Conveyor belt+rubber pressure roller clamp feeding (suitable for pipe through workpieces. Workpiece length>300mm) 3. Strong permanent magnet adsorption feeding (suitable for carbon steel workpieces. Workpiece size>30mmx30mm) 4. Vacuum negative pressure adsorption feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size>50mmx50mm)

5. Four column synchronous lifting, digital setting and reading of lifting height, unit: mm

6. Each workstation of the equipment is equipped with sprinkler pipes to provide grinding fluid. The magnetic adsorption outlet is equipped with a demagnetizer to demagnetize the workpiece.

7. Equipped with an automatic paper tape filter to filter grinding dust and provide grinding circulating grinding fluid, achieving environmentally friendly production.

8. Equipped with wet vacuum cleaners or industrial pulse vacuum cleaners to handle grinding dust and achieve environmentally friendly production.

Technical parameters:

Equipment processing thickness 0.5-80mm

Sand belt linear speed 12m/s (optional variable frequency speed regulation)

Disk brush rotation speed 800-1500r/min (optional variable frequency speed regulation)

Disk brush revolution speed 50-150r/min (optional variable frequency speed regulation) speed

Disk brush combination swing frequency 120-280 times/min (optional variable frequency adjustable)

Conveying speed 0.5-6m/min (adjustable by frequency converter)
