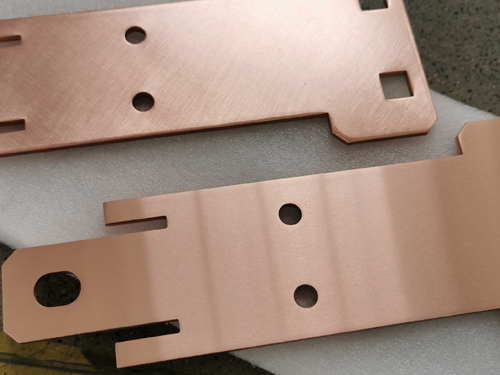

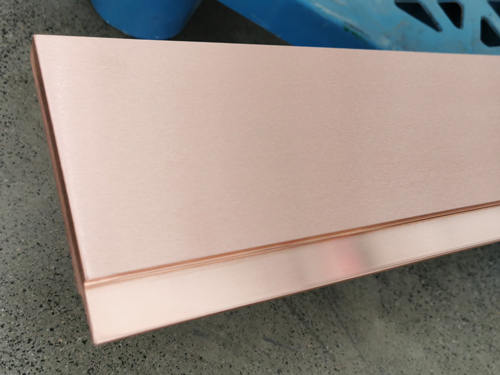

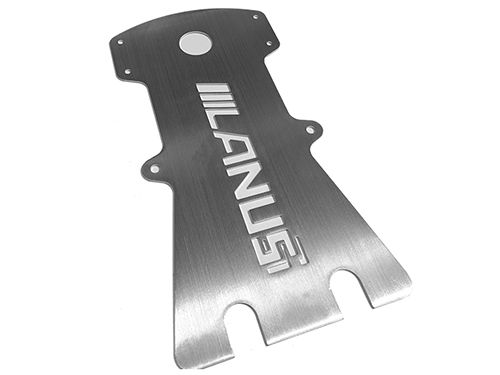

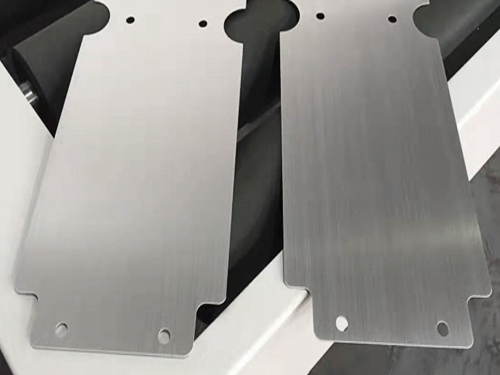

1. Equipment function: Deburring the edges and holes of the workpiece to make the surface consistent, and achieving a uniform R-arc for all edges and holes.

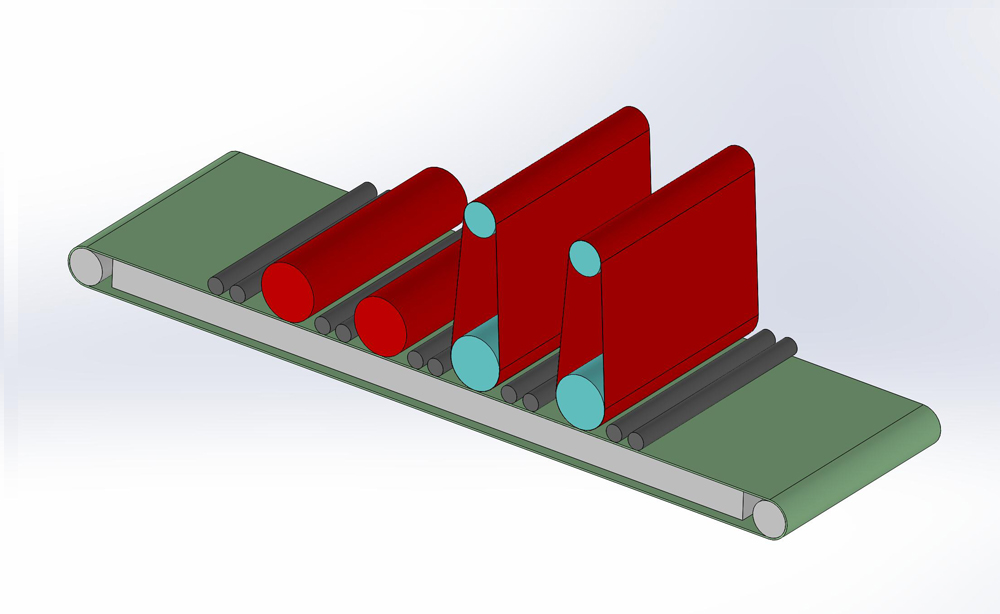

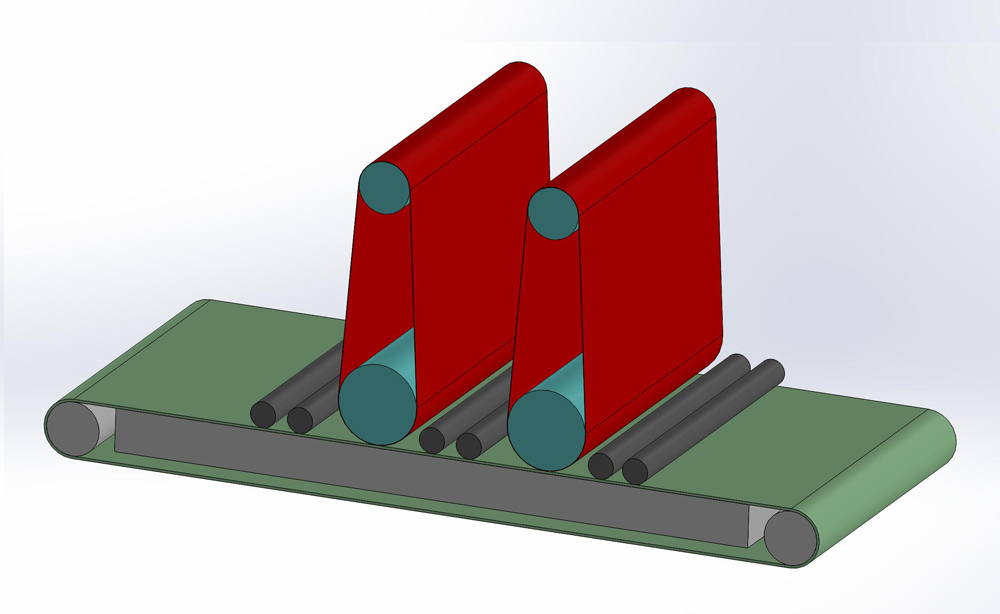

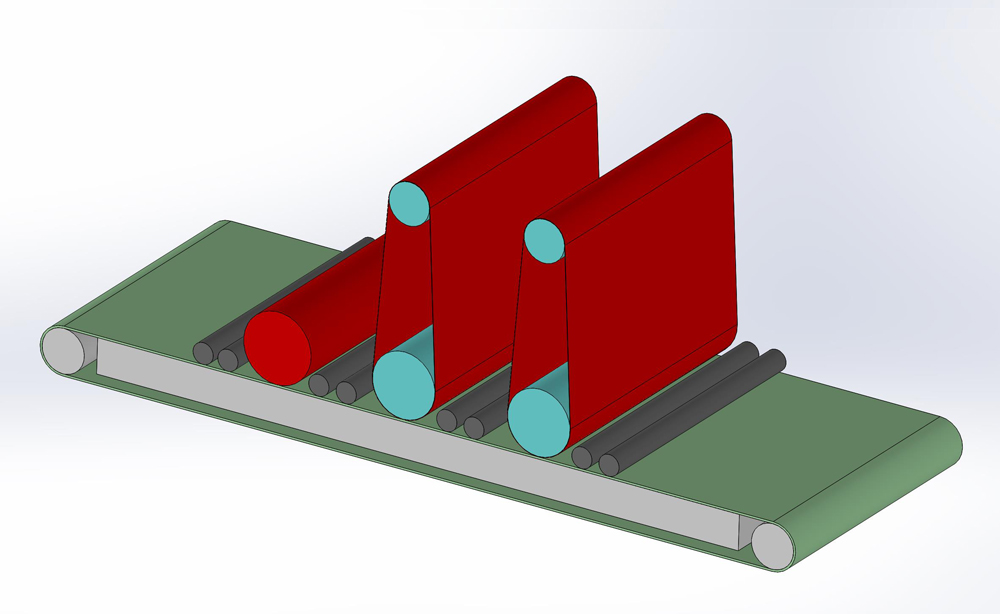

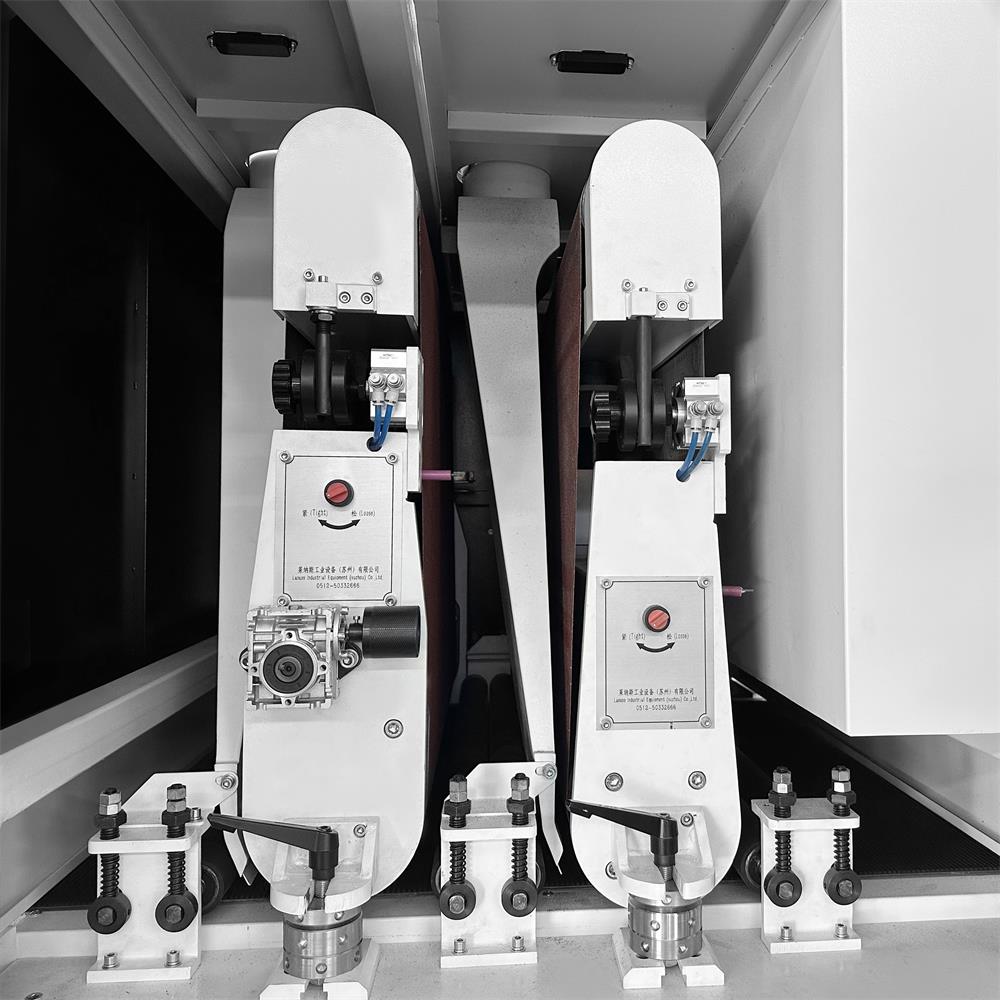

2. Equipment combination: sand belt grinding station+disc brush grinding station, single or multiple combination structures

3. Equipment processing width: 300mm, 400mm, 650mm, 1050mm, 1350mm

(1) The 300mm width is composed of three planetary arranged disk brushes, with each brush rotating on its own and the entire brush assembly revolving around it

(2) The 400mm width is composed of four planetary arranged disk brushes, with each brush rotating on its own and the entire brush assembly revolving around it

(3) The 650mm width is composed of 5 staggered disc brushes, with adjacent two disc brushes rotating in both directions. The entire disc brush combination swings laterally in the vertical direction of the feeding

(4) 1050mm width is composed of 7 staggered disc brushes, with adjacent two disc brushes rotating forward and backward. The entire disc brush combination swings laterally in the vertical direction of the feeding

(5) The 1350mm width is composed of 9 staggered disc brushes, with adjacent two disc brushes rotating in both directions. The entire disc brush combination swings laterally in the vertical direction of the feeding

4. Equipment processing thickness: 1-100mm

5. Sand belt linear speed: 18m/s (optional variable frequency speed regulation)

6. Disk brush rotation speed: 3000r/min (optional variable frequency speed regulation)

7. Disk brush revolution speed: 150r/min (optional variable frequency speed regulation)

8. Disk brush combination swing frequency: 120-280 times/min (optional variable frequency adjustable)

9. Conveying and feeding speed: 0.5-6m/min (variable frequency adjustable)

10. Optional feeding methods:

(1) Conveyor belt+rubber roller clamp feeding (suitable for ordinary workpieces. Workpiece length ≥ 480mm)

(2) Strong permanent magnet adsorption conveying and feeding (suitable for carbon steel workpieces. Workpiece size ≥ 10mm × 10mm)

(3) Vacuum negative pressure adsorption conveying and feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size ≥ 50mm × 50mm)

11. Four column synchronous lifting, digital setting and reading of lifting height, unit: mm

12. Each workstation of the equipment is equipped with sprinkler pipes to provide grinding fluid. The magnetic adsorption outlet is equipped with a demagnetizer to demagnetize the workpiece.

13. Equipped with an automatic paper tape filter to filter grinding dust and provide grinding circulating grinding fluid, achieving environmentally friendly production.

14. Advantages of wet processing:

(1) Wet processing of workpieces is less prone to thermal deformation during cold processing;

(2) Wet processing results in better surface roughness of workpieces;

(3) Wet machining absorbs all grinding dust, creating a better working environment;

(4) Wet processing consumables have a longer service life.
