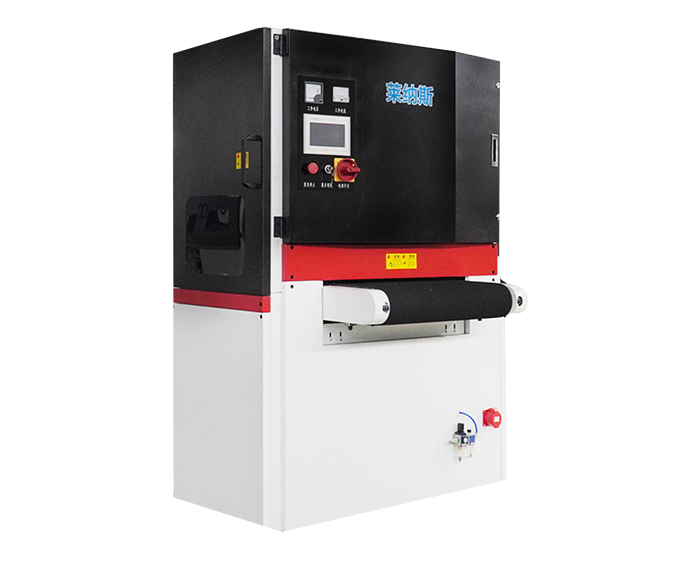

Lanuss fully automatic deburring, wire drawing, and oxide skin removal equipment
Suitable for surface drawing, polishing, scratch removal, longitudinal burr removal, oxide skin removal, roughening, thickness adjustment, and other processing of flat panel parts such as carbon steel plates, stainless steel plates, aluminum plates, copper plates, titanium alloys, various non-ferrous metals, rubber materials, marble, etc.
Product Model：RYMSG-A350
Scope Of Application
Product Scope: Equipment Scope: Suitable for flat plate parts, carbon steel plates, stainless steel plates, aluminum plates, copper plates, titanium alloys, various non-ferrous metals, rubber and plastic materials, marble, etc.
Product Parameters
Optional feeding methods:
1. Conveyor belt+rubber roller clamp feeding (suitable for ordinary workpieces. Workpiece length>280mm)
2. Strong permanent magnet adsorption conveying and feeding (suitable for carbon steel workpieces. Workpiece size>30mmx30mm)
3. Vacuum negative pressure adsorption conveying and feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size>50mmx50mm)
4. Rubber roller+rubber roller clamp feeding (made for large and heavy workpieces. Workpiece length>280mm)
Equipment function: Suitable for surface drawing, polishing, scratch removal, longitudinal burr removal, oxide skin removal, hair pulling, thickness adjustment and other processing of various flat board parts
Equipment combination: single or multiple combination structures of sanding belt and polishing wheel.
Equipment configuration:
Equipment processing width: 350mm, 650mm, 800mm, 1050mm, 1350mm, 1600mm, 1900mm, 2200mm
Four column synchronous lifting, digital setting and reading of lifting height, display accuracy of 0.01mm
Each workstation of the equipment is equipped with spray water pipes to provide grinding fluid, and water blocking rollers are installed at the inlet and outlet to prevent grinding fluid splashing. The outlet is equipped with a downwind blade for cutting and drying water, and three sets of water squeezing rollers are used for water squeezing.
Equipped with an automatic paper tape overcurrent machine to filter grinding dust and provide grinding circulation grinding fluid, achieving environmentally friendly production.
Equipped with wet vacuum cleaners or industrial pulse vacuum cleaners to process grinding dust and achieve environmentally friendly production.
Technical parameters:
Equipment processing thickness 0.5-80mm
Sand belt linear speed 12m/s (optional variable frequency speed regulation)
Polishing wheel line speed 15m/min (optional variable frequency speed regulation)
Conveying speed 2-11m/min (variable frequency adjustable)

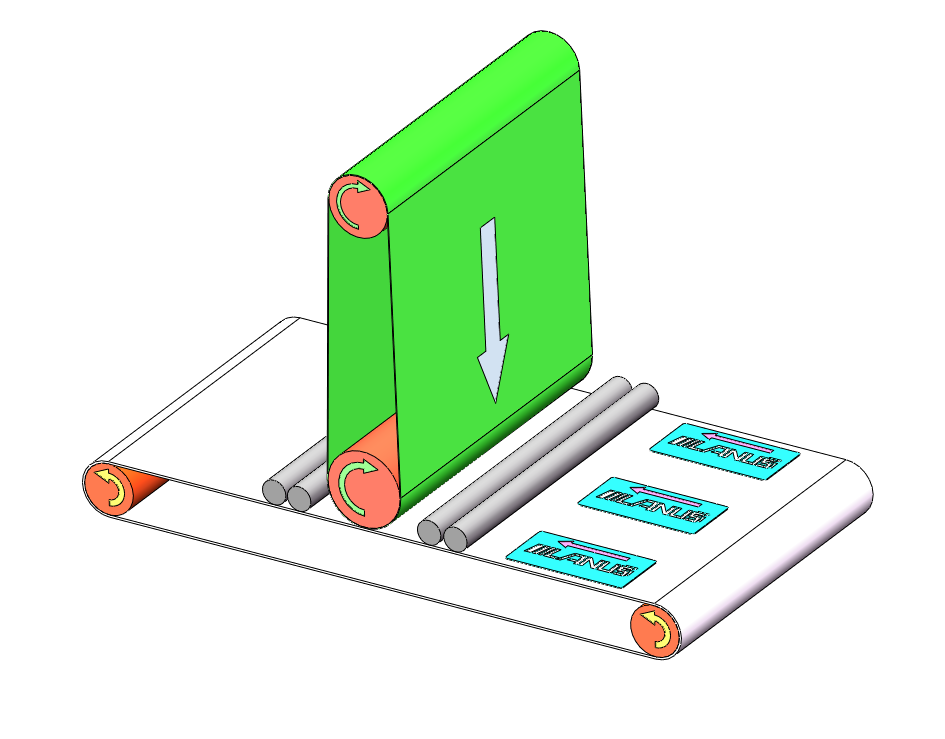

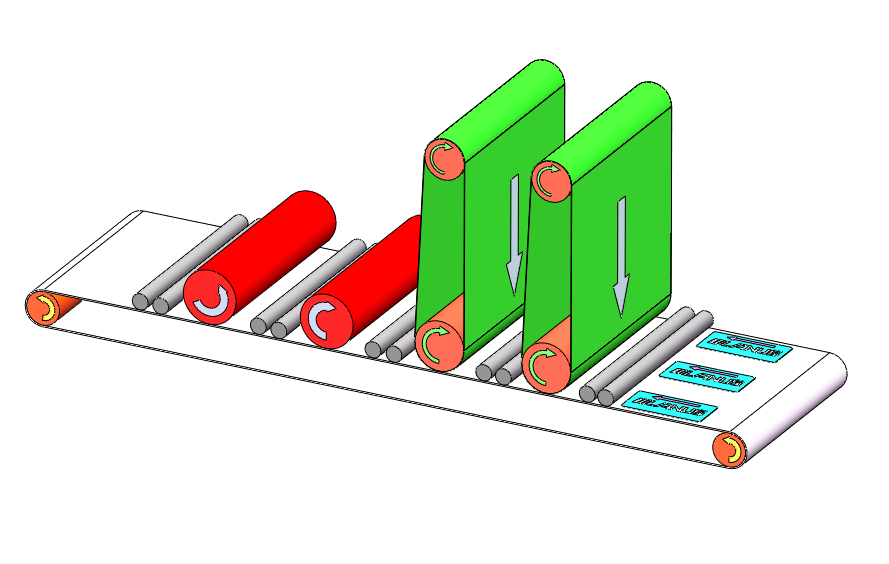

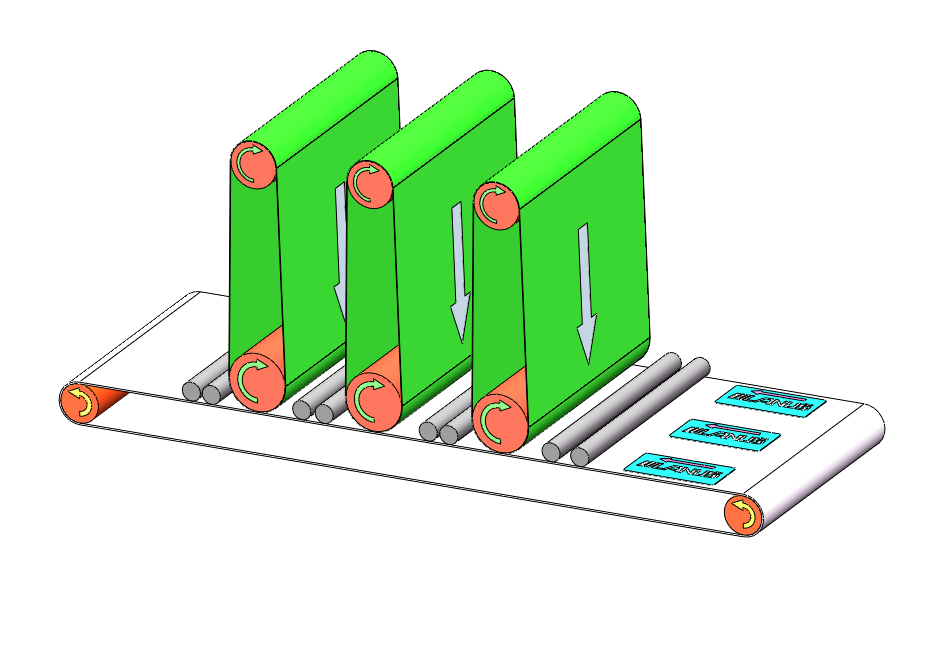

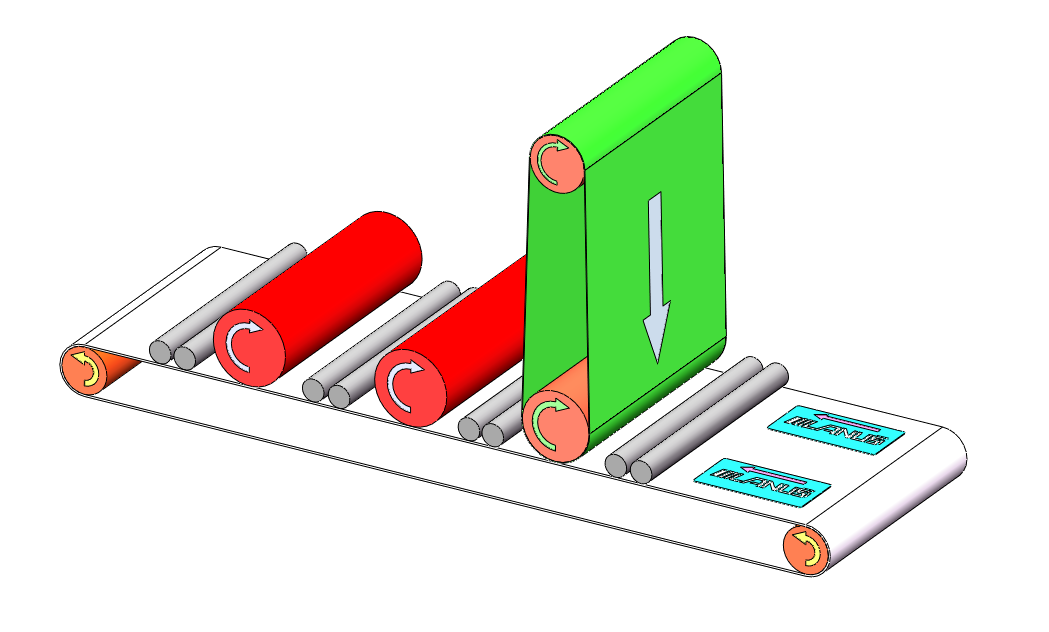

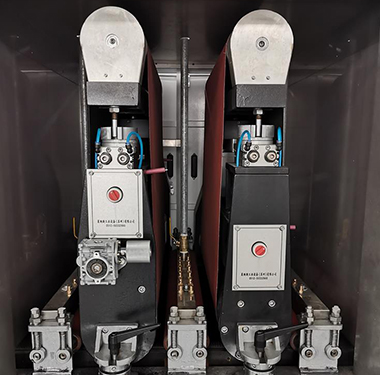

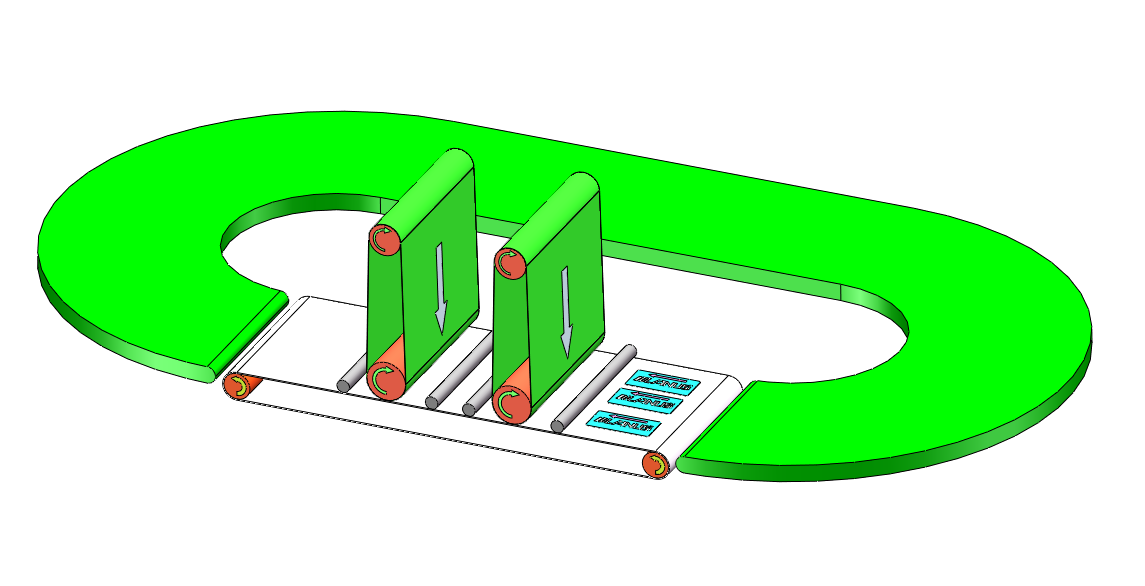

Equipment Structure
 |
 |
 |
 |
 |
 |

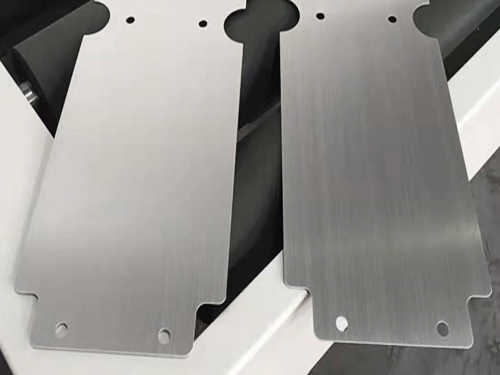

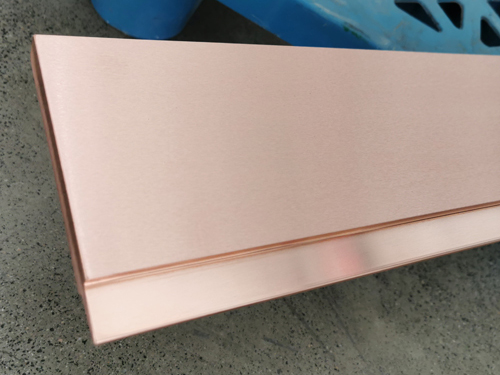

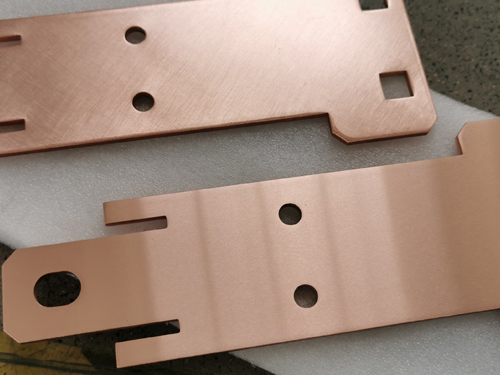

Equipment Processing Workpiece
 |
 |
 |
