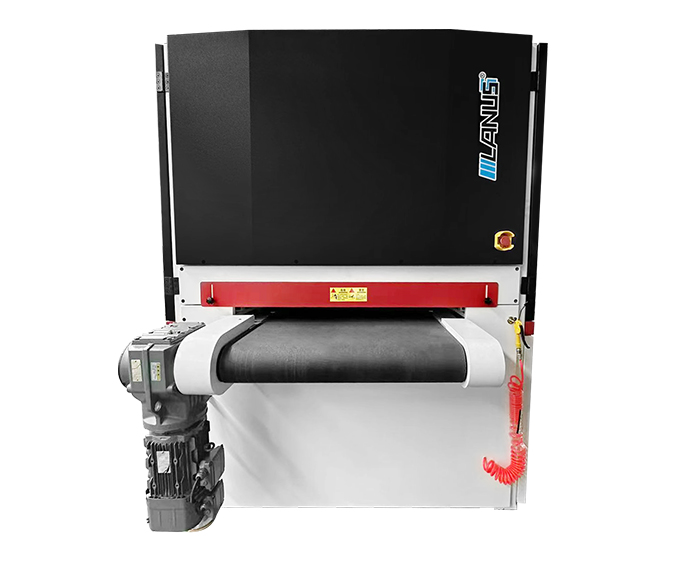

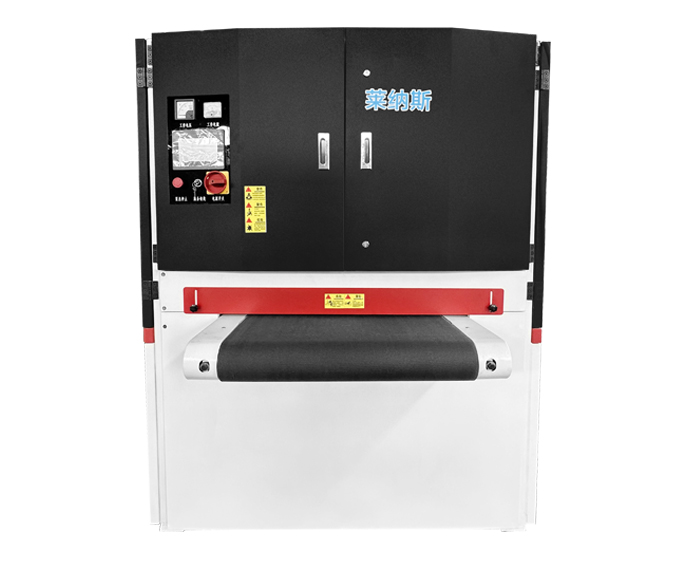

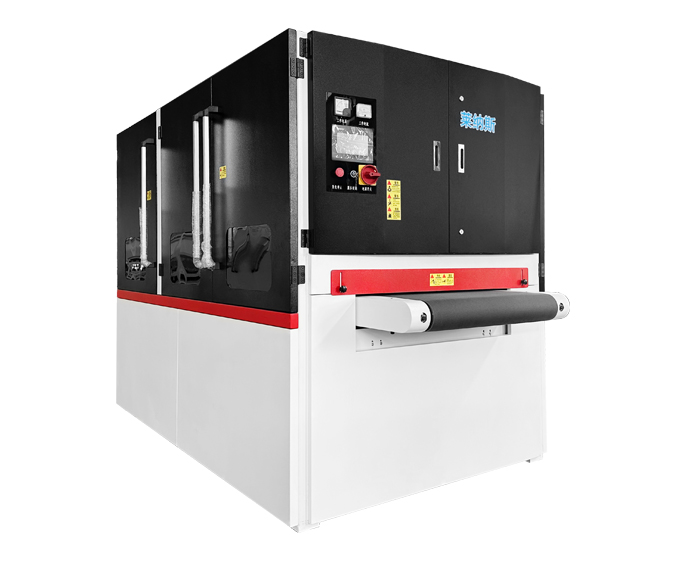

Lanuss Fully Automatic Deburring, Drawing and Chamfering Equipment
Suitable for flat plate parts, carbon steel plates, stainless steel plates, aluminum plates, copper plates, titanium alloys, various non-ferrous metals, rubber materials, etc. Equipment function: It is a processing equipment for pre grinding, drawing, polishing, scratch removal, deburring, chamfering and blunting the surface of workpieces such as laser cutting, cutting, stamping, waterjet cutting, plasma cutting, etc.
Product Model：RYMSP-H1000
Scope Of Application
Product scope of application:
Suitable for flat plate parts, carbon steel plates, stainless steel plates, aluminum plates, copper plates, titanium alloys, various non-ferrous metals, rubber materials, etc. Equipment function: Pre grinding, drawing, polishing, scratch removal, deburring, chamfering and blunting of workpiece surfaces such as laser cutting, cutting, stamping, waterjet cutting, plasma cutting, etc. Equipment combination: wide sand belt+universal roller brush single or multiple combination structures
Product Parameters
Equipment configuration:
Equipment processing width: 450mm, 800mm, 1000mm, 1350mm, 1600mm
Equipment processing thickness: 0.5-80mm
Conveyor feeding speed: 0.5-6m/min (variable frequency adjustable)
Optional feeding methods: 1. Strong permanent magnet adsorption conveying feeding (suitable for carbon steel workpieces. Workpiece size>30mmx30mm) 2. Vacuum negative pressure adsorption conveying feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size>50mmx50mm) Four column synchronous lifting and lowering, roller brush station independent lifting, lifting servo control, accuracy 0.01mm. The CNC PLC touch screen of the whole machine adjusts the processing parameters. Equipped with wet vacuum cleaners or industrial pulse vacuum cleaners to process grinding dust and achieve environmentally friendly production.

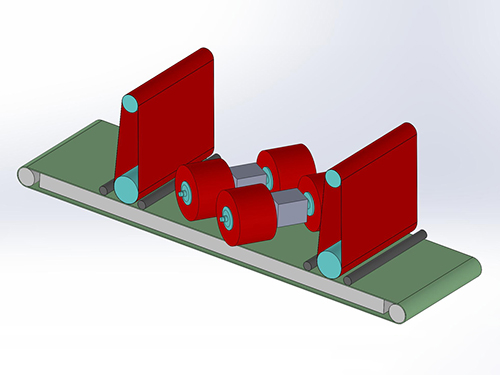

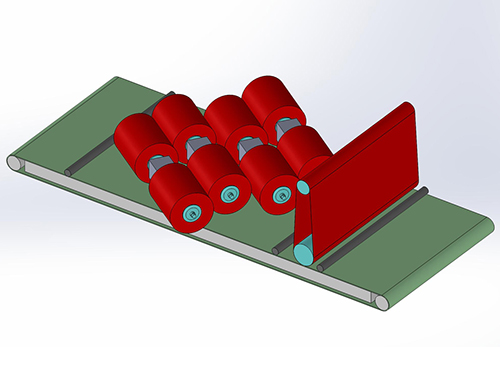

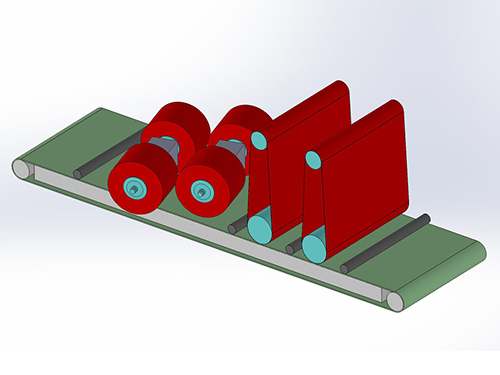

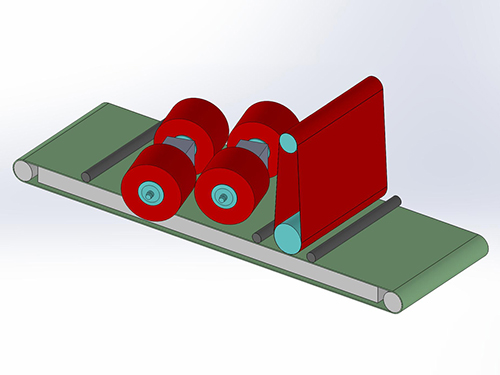

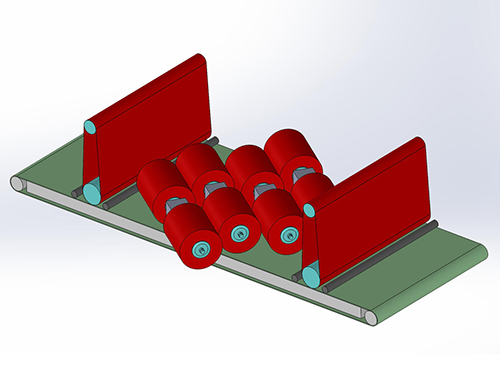

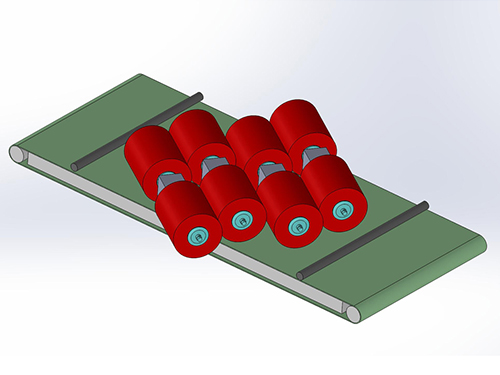

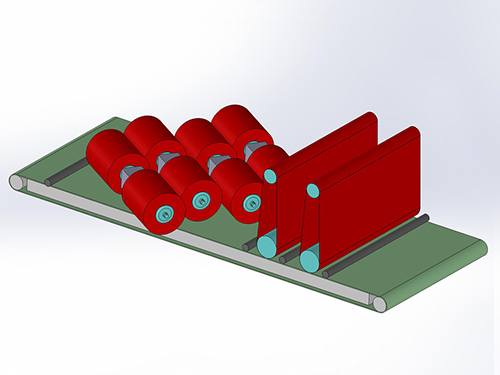

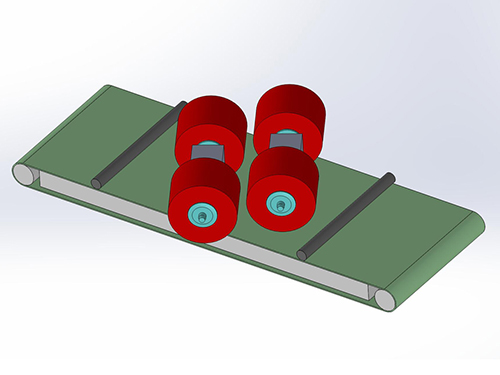

Equipment Structure
 |
 |
 |
 |
 |
 |
 |
 |

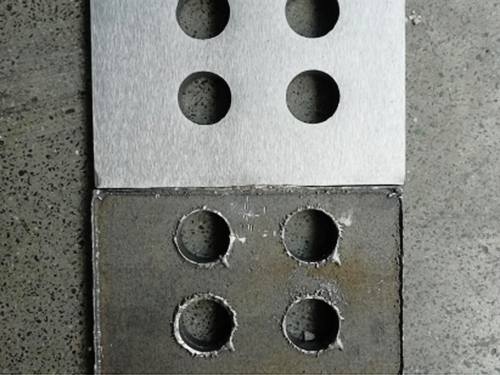

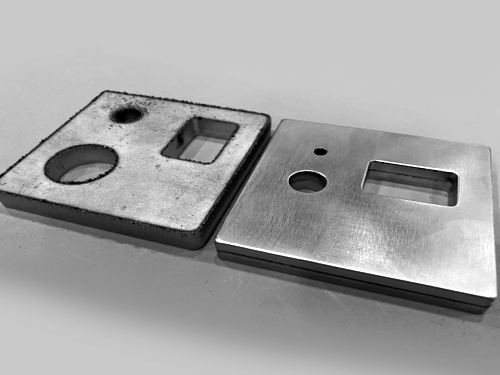

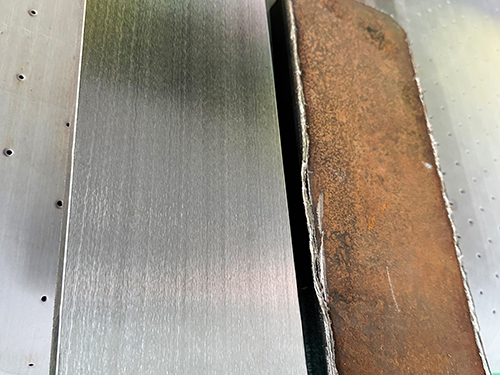

Equipment Processing Workpiece
 |
 |
 |
