1. Equipment function: Suitable for surface drawing, polishing, scratch removal, longitudinal burr removal, oxide skin removal, hair pulling, thickness adjustment and other processing of various flat board parts.

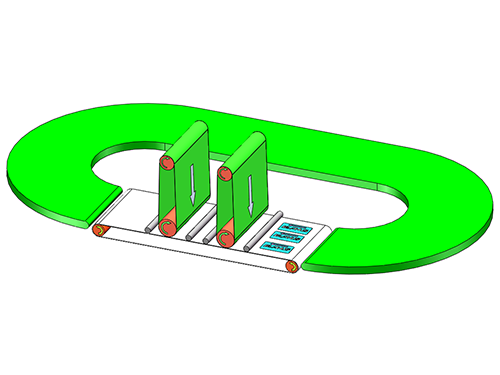

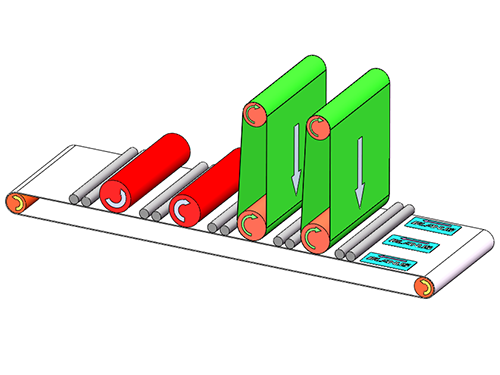

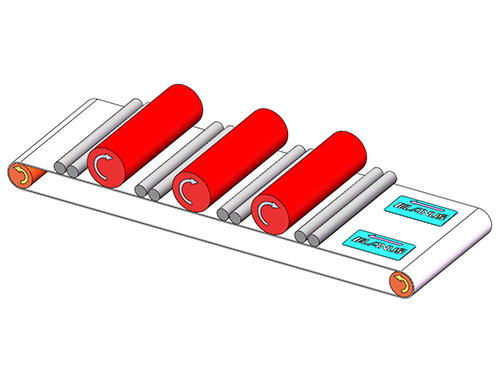

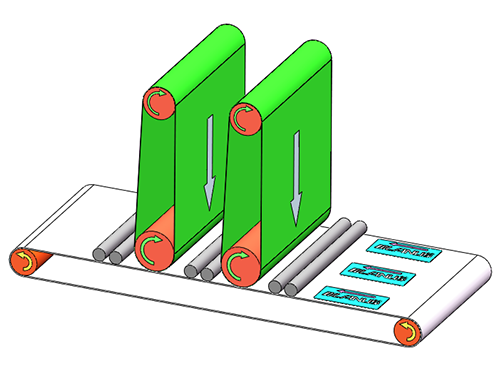

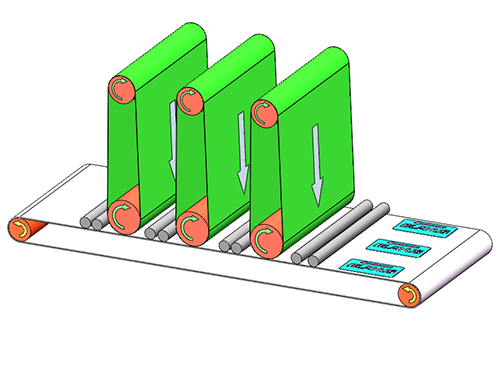

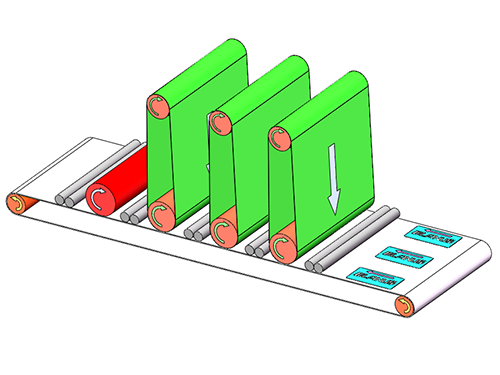

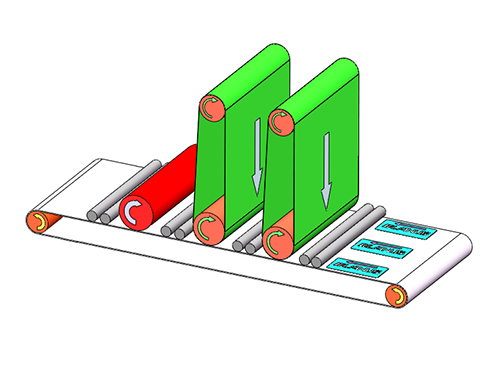

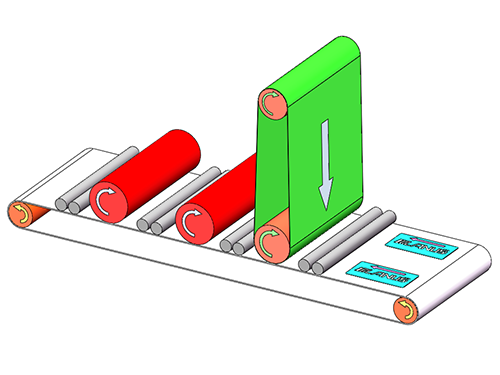

2. Equipment combination: single or multiple combination structures of sanding belt and polishing wheel

3. Equipment processing width: 350mm, 650mm, 800mm, 1050mm, 1350mm, 1600mm, 2000mm, 2200mm

4. Equipment processing thickness: 1-80mm

5. Sand belt linear speed: 18m/s (optional variable frequency speed regulation)

6. Polishing wheel linear speed: 20m/s (optional variable frequency speed regulation)

7. Conveying and feeding speed: 2-11m/min (adjustable by frequency conversion)

8. Optional feeding methods:

(1) Conveyor belt+rubber roller clamp feeding (suitable for ordinary workpieces. Workpiece length ≥ 280mm)

(2) Strong permanent magnet adsorption conveying and feeding (suitable for carbon steel workpieces. Workpiece size ≥ 10mm × 10mm)

(3) Vacuum negative pressure adsorption conveying and feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size ≥ 50mm × 50mm)

(4) Rubber roller+rubber roller clamp feeding (suitable for large and heavy workpieces. Workpiece length ≥ 280mm)

9. Four column synchronous lifting, digital setting and reading of lifting height, unit: mm

10. Equipped with wet vacuum cleaners or industrial pulse vacuum cleaners to process grinding dust and achieve environmentally friendly production.
