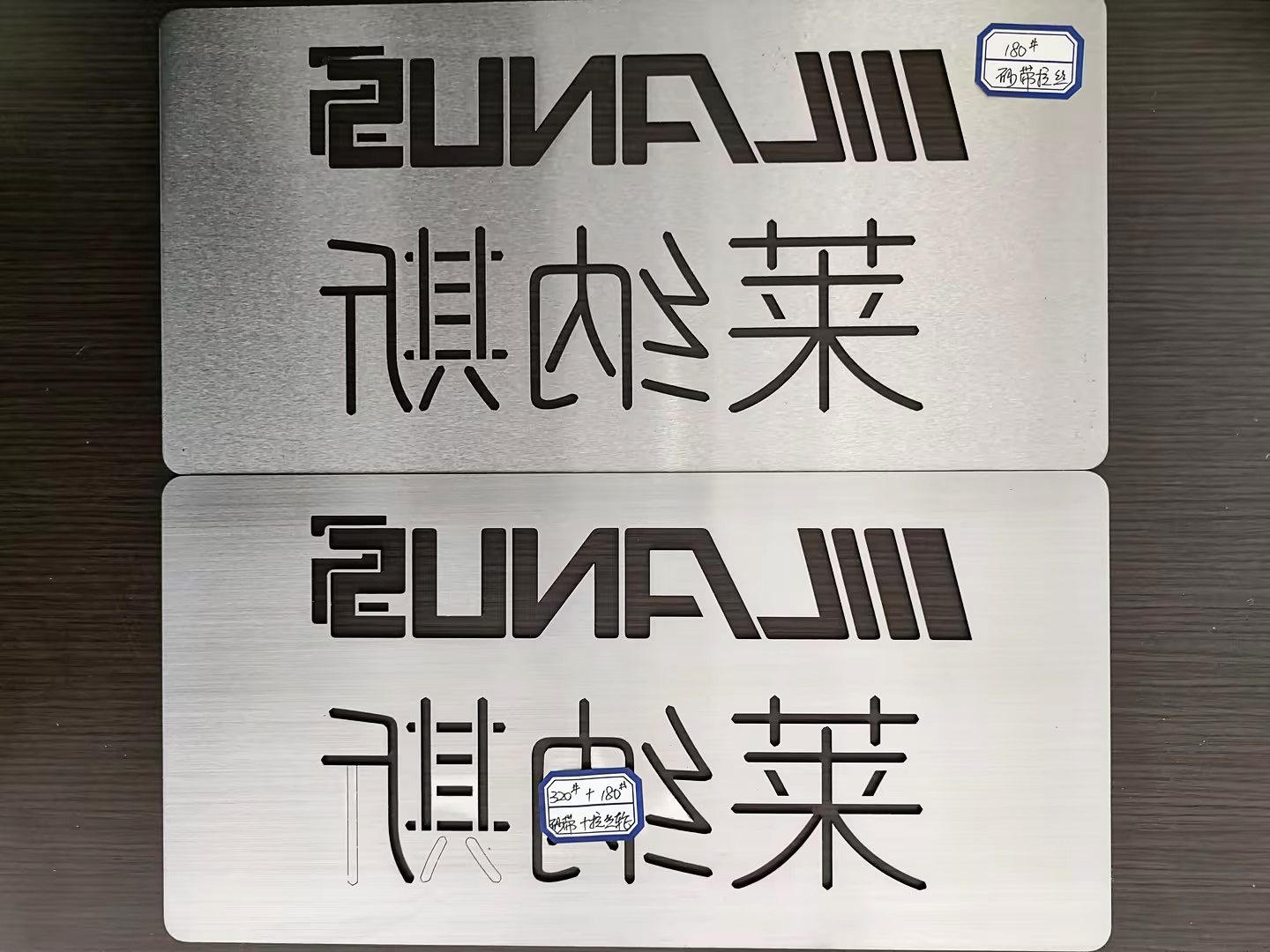

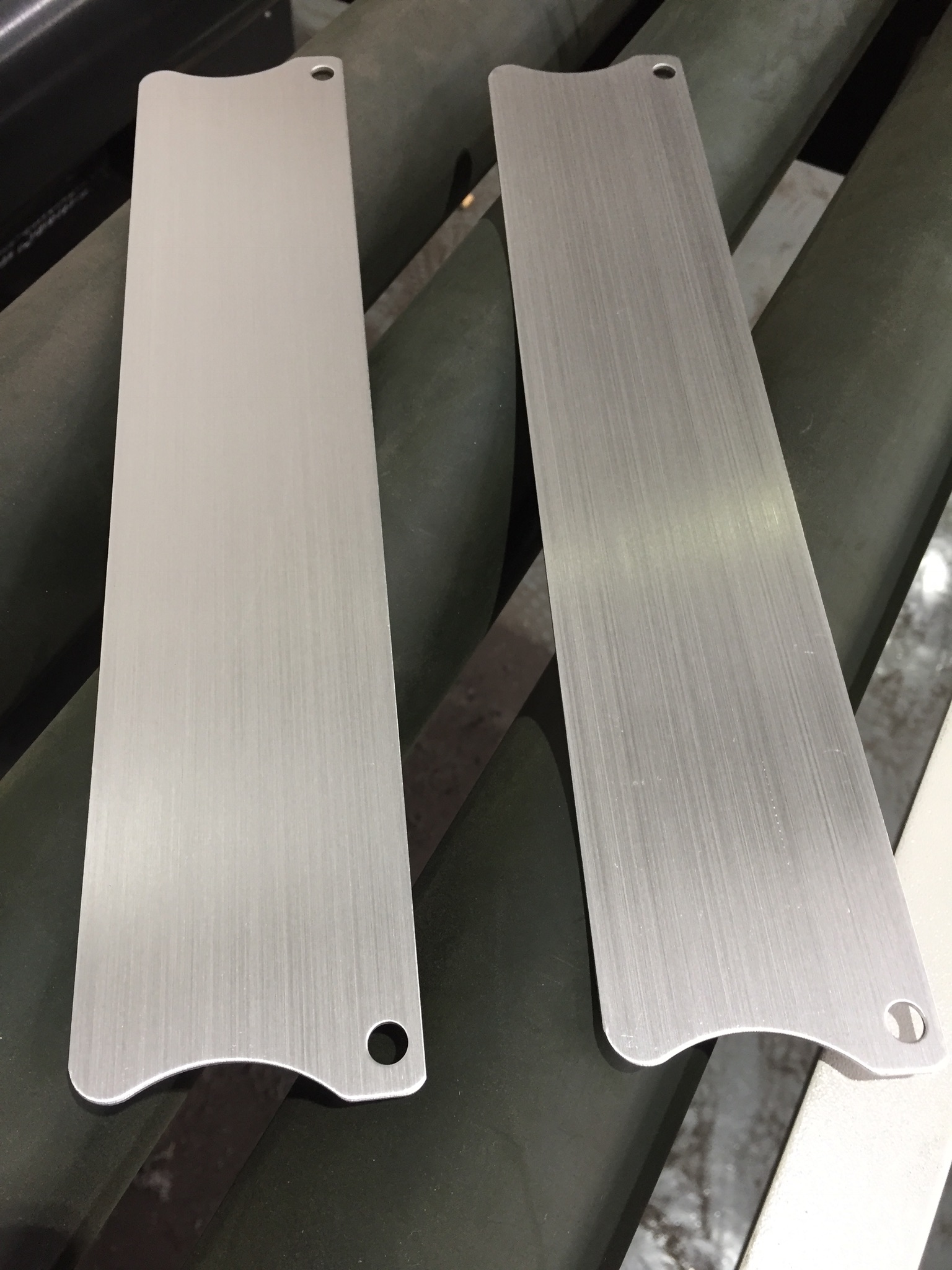

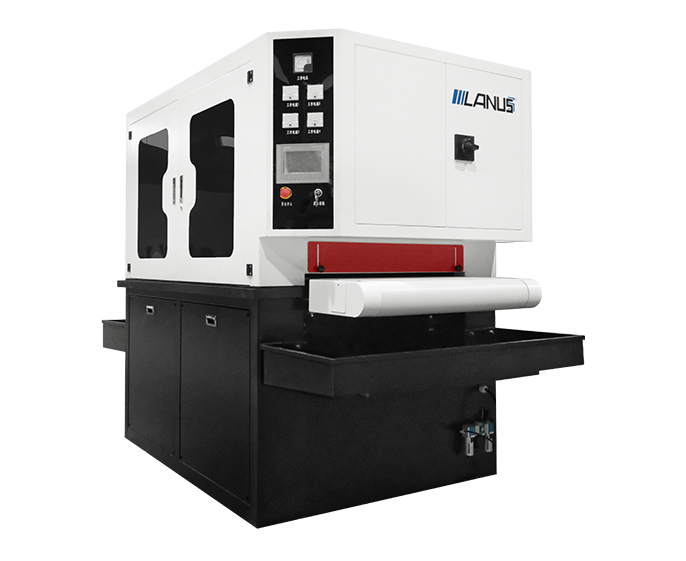

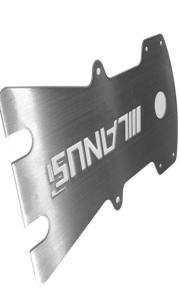

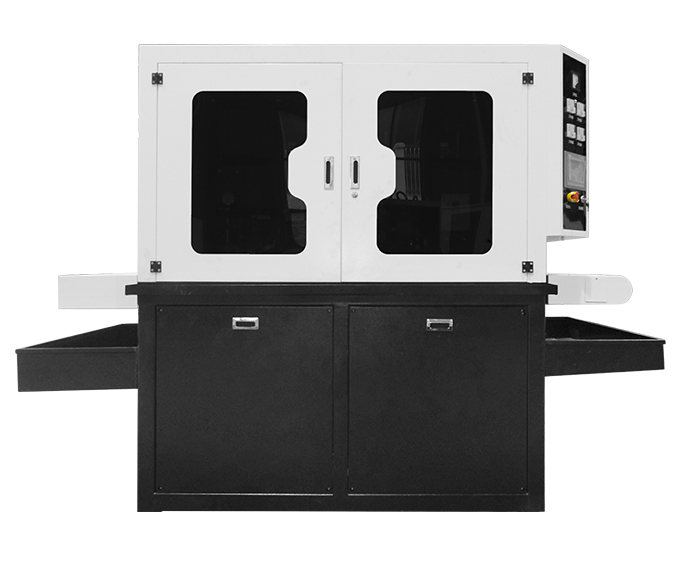

1. Equipment function: Suitable for surface drawing, polishing, scratch removal, longitudinal burr removal, oxide skin removal, hair pulling, thickness adjustment and other processing of various flat board parts.

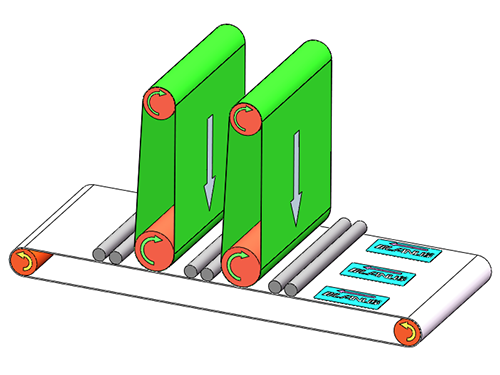

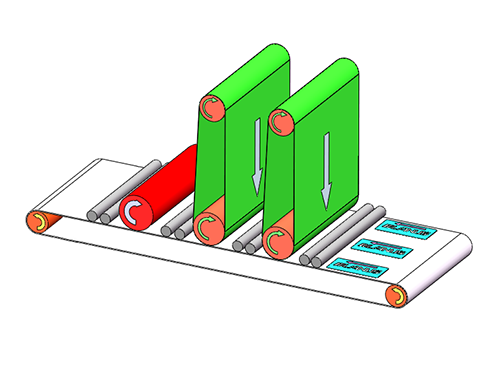

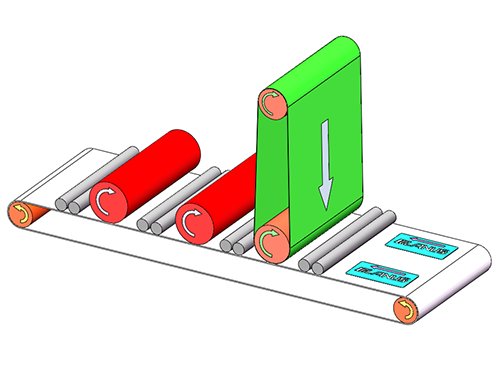

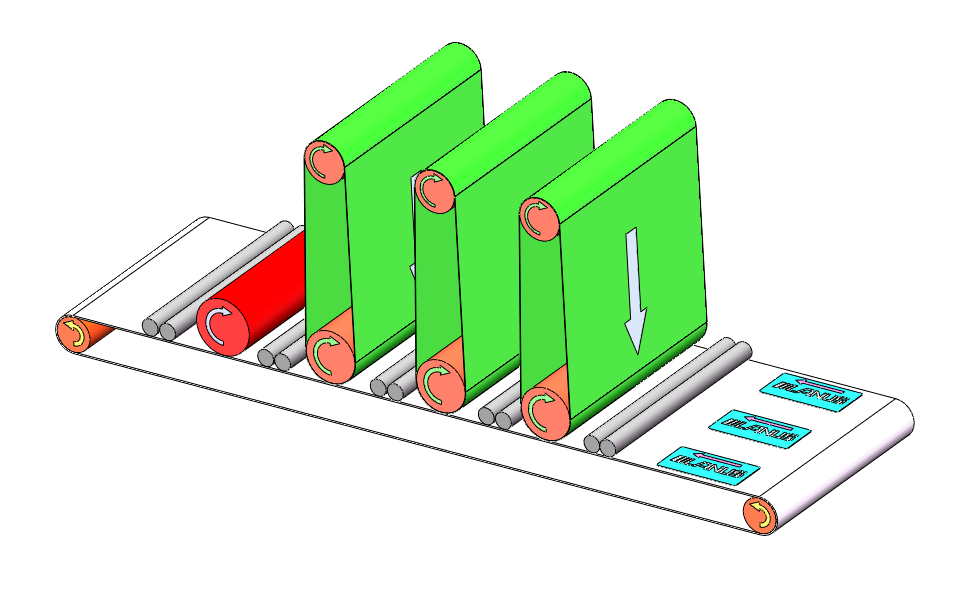

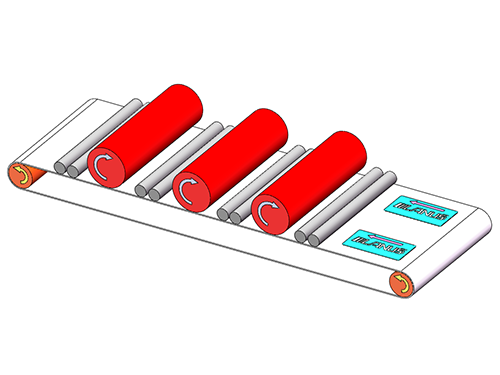

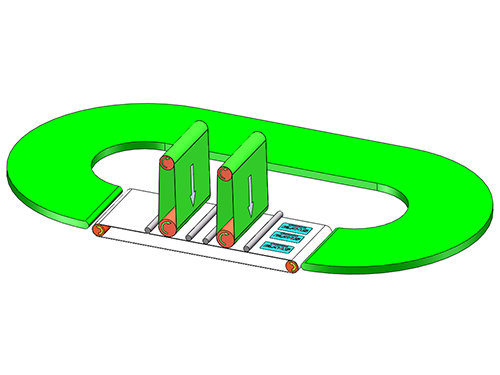

2. Equipment combination: single or multiple combination structures of sanding belt and polishing wheel

3. Equipment processing width: 350mm, 650mm, 800mm, 1050mm, 1350mm, 1600mm, 2000mm, 2200mm

4. Equipment processing thickness: 1-80mm

5. Sand belt linear speed: 18m/s (optional variable frequency speed regulation)

6. Polishing wheel linear speed: 20m/s (optional variable frequency speed regulation)

7. Conveying and feeding speed: 2-11m/min (adjustable by frequency conversion)

8. Optional feeding methods:

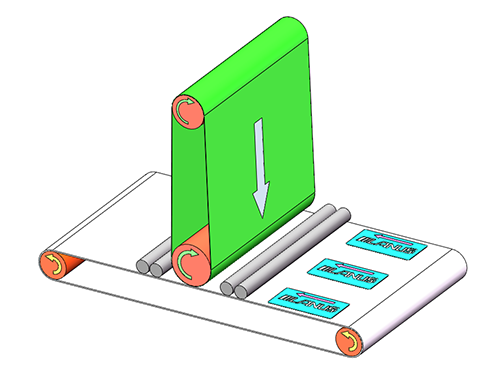

(1) Conveyor belt+rubber roller clamp feeding (suitable for ordinary workpieces. Workpiece length ≥ 280mm)

(2) Strong permanent magnet adsorption conveying and feeding (suitable for carbon steel workpieces. Workpiece size ≥ 10mm × 10mm)

(3) Vacuum negative pressure adsorption conveying and feeding (suitable for stainless steel plates, copper plates, aluminum plates, etc. that are not magnetically adsorbed. Workpiece size ≥ 50mm × 50mm)

(4) Rubber roller+rubber roller clamp feeding (suitable for large and heavy workpieces. Workpiece length ≥ 280mm)

9. Four column synchronous lifting, digital setting and reading of lifting height, unit: mm

10. Each workstation of the equipment is equipped with spray water pipes to provide grinding fluid. Water blocking rollers are installed at the inlet and outlet to prevent grinding fluid splashing. A downwind knife is installed at the outlet to cut and dry the water, and three sets of water squeezing rollers are used to squeeze the water.

11. Equipped with an automatic paper tape filter to filter grinding dust and provide grinding circulating grinding fluid, achieving environmentally friendly production.

12. Advantages of wet processing:

(1) Wet processing of workpieces is less prone to thermal deformation during cold processing;

(2) Wet processing results in better surface roughness of workpieces;

(3) Wet machining absorbs all grinding dust, creating a better working environment;

(4) Wet processing consumables have a longer service life.
