Lanuss Semi-Automatic Manual Deburring and Chamfering Equipment

This model is a combination of a workbench and a mechanical polishing arm, suitable for surface polishing, slag removal, deburring and other treatments of small batches of metal sheets.

Product Model:LSD-162

  • Scope Of Application
  • Product Parameters
  • Equipment Structure
  • Equipment Processing Workpiece
  • Scope Of Application

    This model is a combination of a workbench and a mechanical polishing arm, suitable for surface polishing, slag removal, deburring and other treatments of small batches of metal sheets. The machine is very convenient to use, and only requires gentle manual pressure to achieve the desired grinding force. The self controlled vacuum adsorption workbench automatically distributes vacuum suction, and the workpiece is placed flat on the workbench without any clamping for grinding, which is efficient and safe. Different disc brushes can be selected according to the actual workpiece to achieve the desired effect. The machine comes with a built-in vacuum function, which automatically removes the debris generated during the grinding of workpieces, protecting the health of workers and keeping the workshop clean. One power with two grinding heads configuration, only need to rotate 180 ° to quickly switch grinding heads, efficient, convenient, safe and energy-saving.

    Product Parameters

    Vacuum adsorption platform size 420 * 280mm

    Platform workpiece 1000 * 750mm

    No platform workpiece 1200 * 1200mm

    Cantilever working range 1200 * 360 °

    Processing workpiece thickness range 0.1-150mm

    Grinding head power 0.75kw

    Grinding head speed regulation 500-1400r/min

    Grinding head 2

    Vacuum suction capacity 1000m ³/h

    Total power 3.86kw

    Volume 1250 * 750 * 1500mm

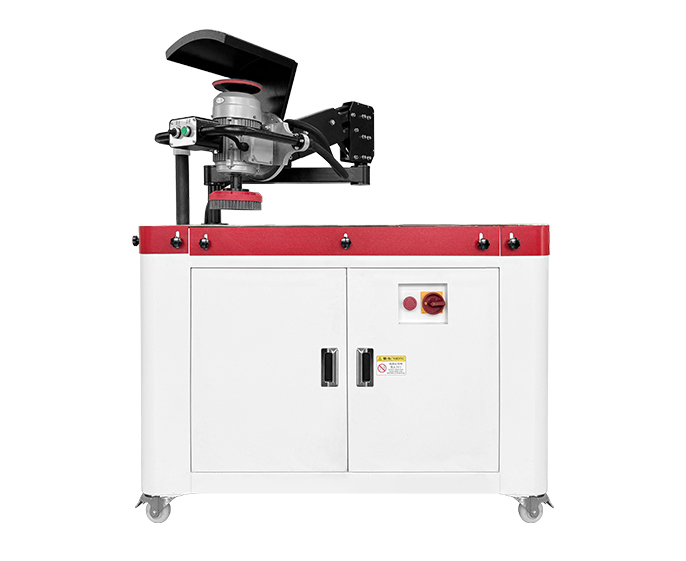

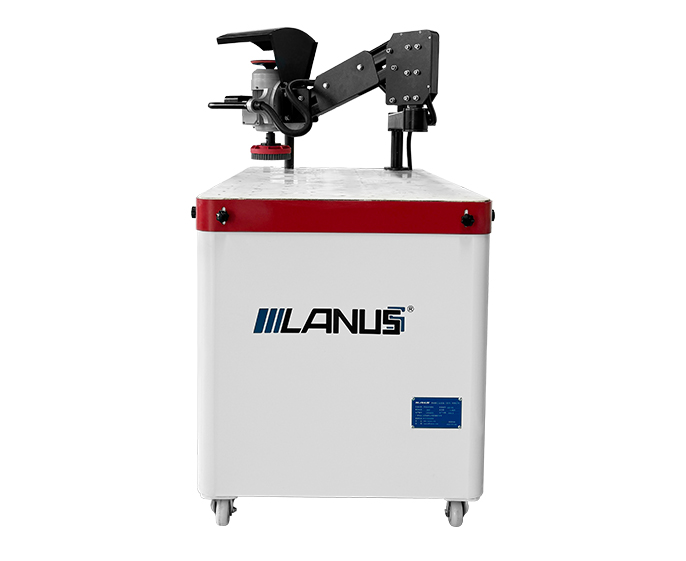

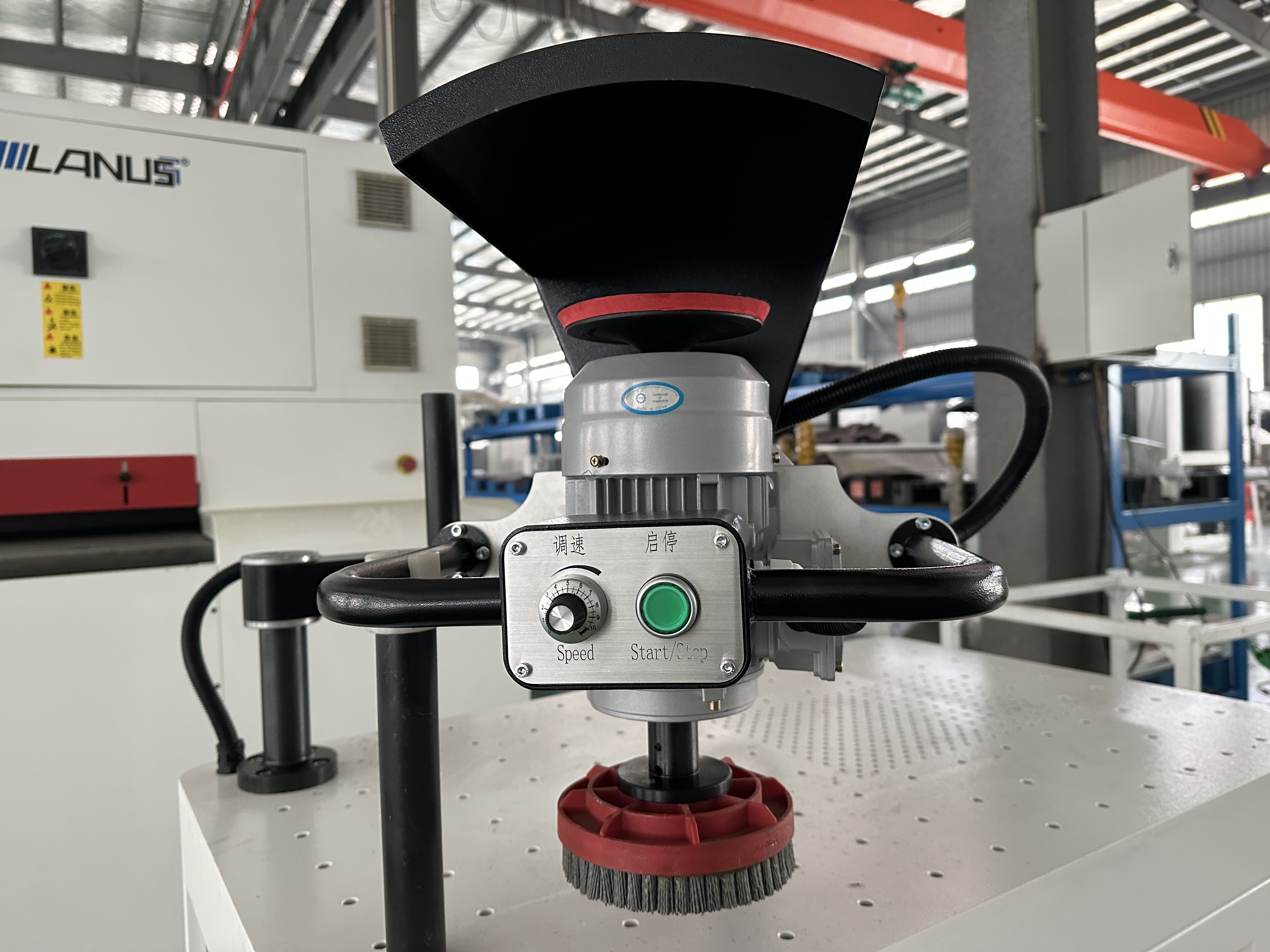

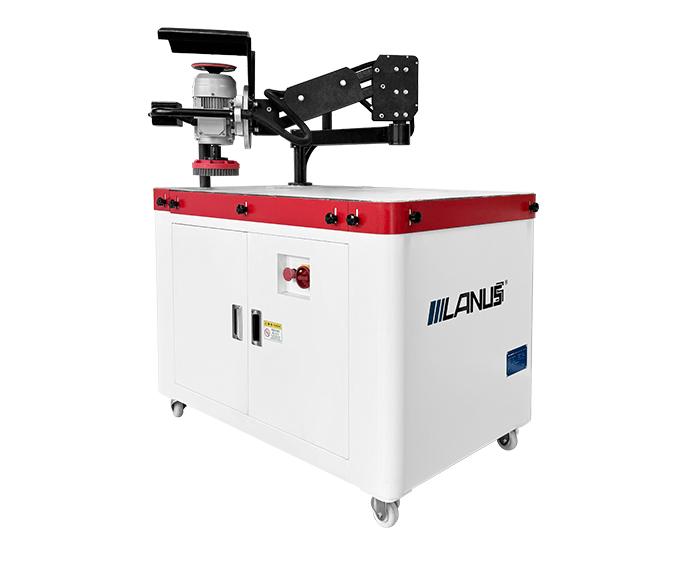

    Equipment Structure

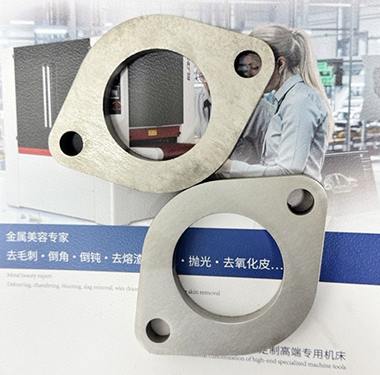

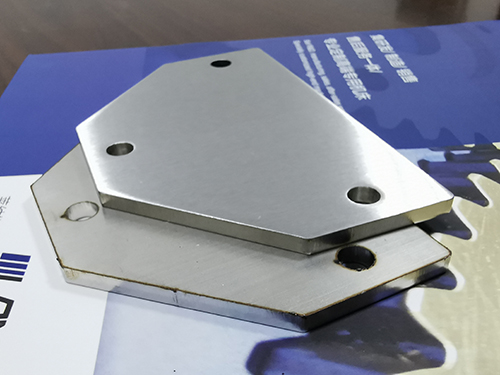

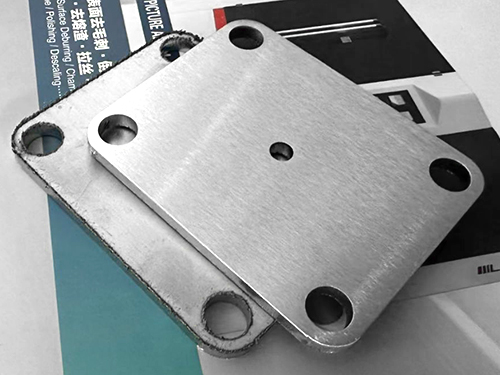

    Equipment Processing Workpiece
