The LSG Flagship Edition (MSG Honor Edition) series is designed for various gold exhibition materials such as stainless steel, carbon steel, aluminum plates, as well as non-metallic materials such as wooden boards and PCB boards, with surface polishing, drawing, roughening, and thickness control treatments;

The LSP Flagship Edition (MSP Honor Edition) series is designed to remove burrs and splashes generated during stamping, shearing, laser cutting, waterjet cutting, and other processes in all directions at once, presenting reliable, rounded, and aesthetically pleasing quality

The LSB series is designed for slag removal, deburring, and chamfering of products such as laser cutting, flame cutting, and plasma cutting.

The LSD series is designed for deburring holes such as automotive parts, powder metallurgy parts, and precision stamping parts, achieving an R-arc effect on the edges and holes of the workpiece. Supporting automation equipment to achieve unmanned operation.

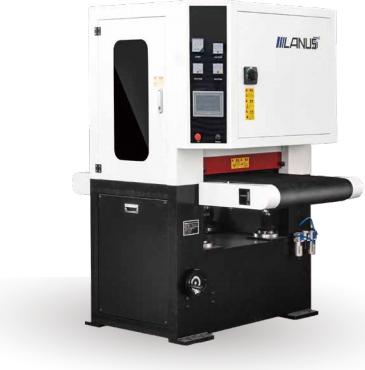

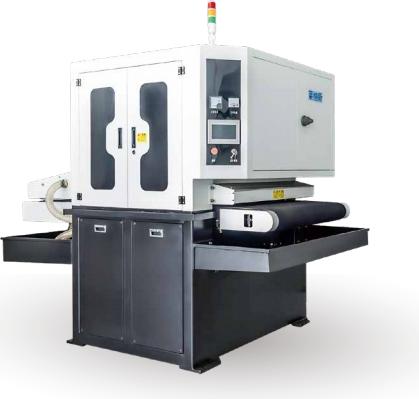

Wet metal sanding machine	Dry metal sanding machine

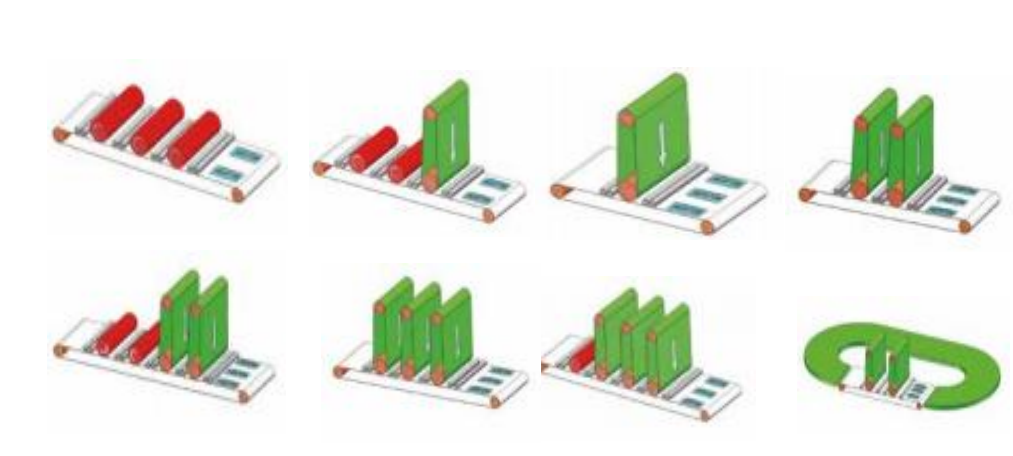

Optional processing methods:

Product application scope:

Equipment application scope: Suitable for flat plate parts, carbon steel plates, stainless steel plates, aluminum plates, copper plates, titanium alloys, various non-ferrous metals, rubber and plastic materials, marble, etc.

Equipment function: Suitable for surface drawing (straight wire), polishing, scratch removal, longitudinal burr removal, oxide scale removal, hair pulling, thickness adjustment and other processing of various flat board parts.

Equipment combination: single or multiple combination structures of sanding belt and polishing wheel.

Equipment configuration:

1. Equipment processing width: 800mm, 1000mm 1350mm 1600m, 2000mm

2. Optional feeding methods:

(1) Conveyor belt+rubber roller clamp feeding (applicable to all flat workpieces. Workpiece length ≥ 280mm).

(2) Strong permanent magnet adsorption conveying and feeding (suitable for carbon steel workpieces. Workpiece size ≥ 30mm × 30mm × 1mm).≥ 30mm×30mm×1mm)。

3. Servo lifting, digital setting of lifting height, display accuracy of 0.01mm.

4. The magnetic adsorption outlet is equipped with a demagnetizer to demagnetize the workpiece.

5. Equipped with wet vacuum cleaners or stainless steel automatic paper tape filters to process grinding dust and achieve environmentally friendly production.

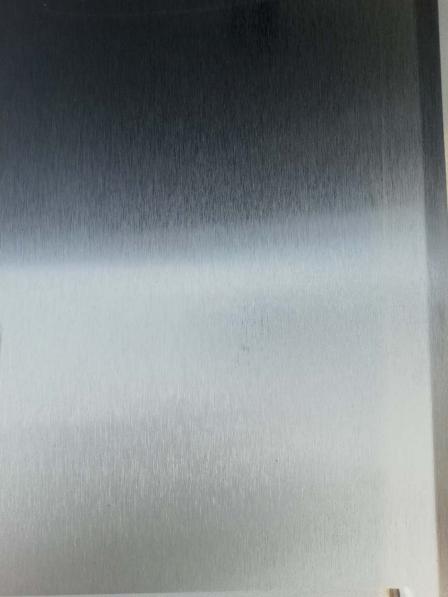

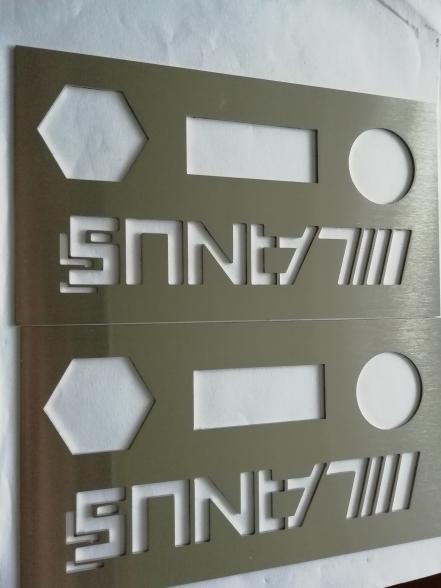

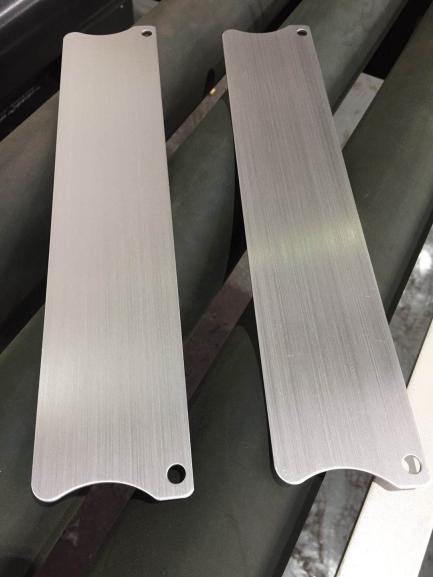

Processing case:
